Air Cooler Evaporator Blast Freezer Evaporator for Refrigeration

Kitdoo DL type cooler unit are suit for storage room temperature from 12 degree to -2 degree, cooling indoor, for keeping fresh flowers, tea processing,seed storage, edible vegetable cultivation.

Brand:
Kitdoo
Payment:
T/T,WesternUnion,L/C
Product Origin:
China
Color:
White
Shipping Port:
Guangzhou/Foshan/Shenzhen
Lead Time:
15 days
Cold room temperature:
12 to -2℃
Refrigerant:
R22/R404A/R410A/R134

Inquiry now

product introduction

Air Cooler Evaporator Blast Freezer Evaporator for Refrigeration

Kitdoo DL type cooler unit for cold storages are suit for storage room temperature from 12 degree to -2 degree,cooler units, for keeping fresh flowers, tea processing,seed storage, edible vegetable cultivation.

Application Occasions：

The cold room evaporator unit is suitable for all kinds of large, medium and small cold storage, food processing rooms and logistics centers for storing fresh-keeping and frozen products. It can also be used for industrial low-temperature air-conditioning. The compact and reliable design makes it more convenient for customers to use.DL series for around 0 degree, and DD sereies for around -18 degree.

Product Features:

The shell of cooler unit is generally made of plastic-sprayed iron plate, food-grade stainless steel plate or embossed aluminum plate. The cold room cold room air cooler has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the air cooler generally uses internal threads. The heat exchange copper tube is in close contact with the aluminum fin through a hydraulic tube expander, thereby reducing the contact distance and improving the heat transfer coefficient.

After the cold room air cooler is produced, it goes through a strict decontamination process to ensure the cleanliness of the quality system. The air cooled evaporator uses a high-efficiency outer rotor motor. The motor of this structure has the advantages of large air volume, high wind speed, and long service life. The air evaporator should be able to Install explosion-proof motors according to different needs.

1.Casting: Adopt high-quality steel plate with powder coating

2.Hinged structure is adopted for both side plates and external drip tray, which is convenient and quick to operate

3.Heat exchanger coil : copper tubingφ15,spacing 50×50

4.Corrugated aluminium fins,fin spacing 4.5/6/9mm

5.Fans : External rotor motor with high wind pressure

Fans individually connected to junction box

Fan bladeφ300, φ350,φ400, φ500, φ630, standard 4-pole motor

7.Defrosting : Standard use of electric defrosting,stainless heating pipes installed in the middle of coil and inner water plate.

Independent electric heating tube junction box.

8.Refrigerants : meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants

Product Features:

Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Fan				HeaterVoltage (v)
Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Qty	Size (mm)	Air flow (m³/h)	Voltage (v)	HeaterVoltage (v)
DL-2.0/10	2000	10	4.5	1	300	1700	380	220
DL-3.0/15	3000	15	4.5	2	300	3400	380	220
DL-5.0/25	5000	25	4.5	3	400	5100	380	220
DL-8.0/40	8000	40	4.5	2	400	8000	380	220
DL-11.2/55	11200	55	4.5	2	500	8000	380	220
DL-16.2/80	16200	80	4.5	2	500	12000	380	220
DL-21.0/105	21000	105	4.5	2	500	12000	380	220
DL-25.0/135	25000	135	4.5	3	500	18000	380	220
DL-32.6/160	32600	160	4.5	3	500	18000	380	220
DL-37.6/185	37600	185	4.5	3	500	18000	380	220
DL-42.7/220	42700	220	4.5	4	500	24000	380	220
DL-50.0/250	50000	250	4.5	4	500	24000	380	220
DL-55.0/280	55000	280	4.5	4	500	24000	380	220
DL-60.0/300	60000	300	4.5	4	500	24000	380	220
DL-66.0/330	66000	330	4.5	4	500	24000	380	220
DL-70.0/375	70000	375	4.5	4	600	44000	380	220
DL-82.0/410	82000	410	4.5	4	600	44000	380	220
DL-94.0/470	94000	470	4.5	5	630	45000	380	220
DL-116.0/580	11600	580	4.5	5	630	45000	380	220

Product Detail：

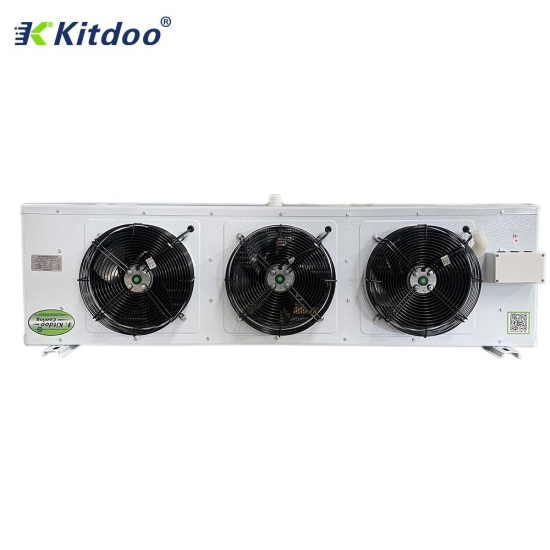

air cooled evaporator

air cooled evaporator cold room air cooler

cold room evaporator unit

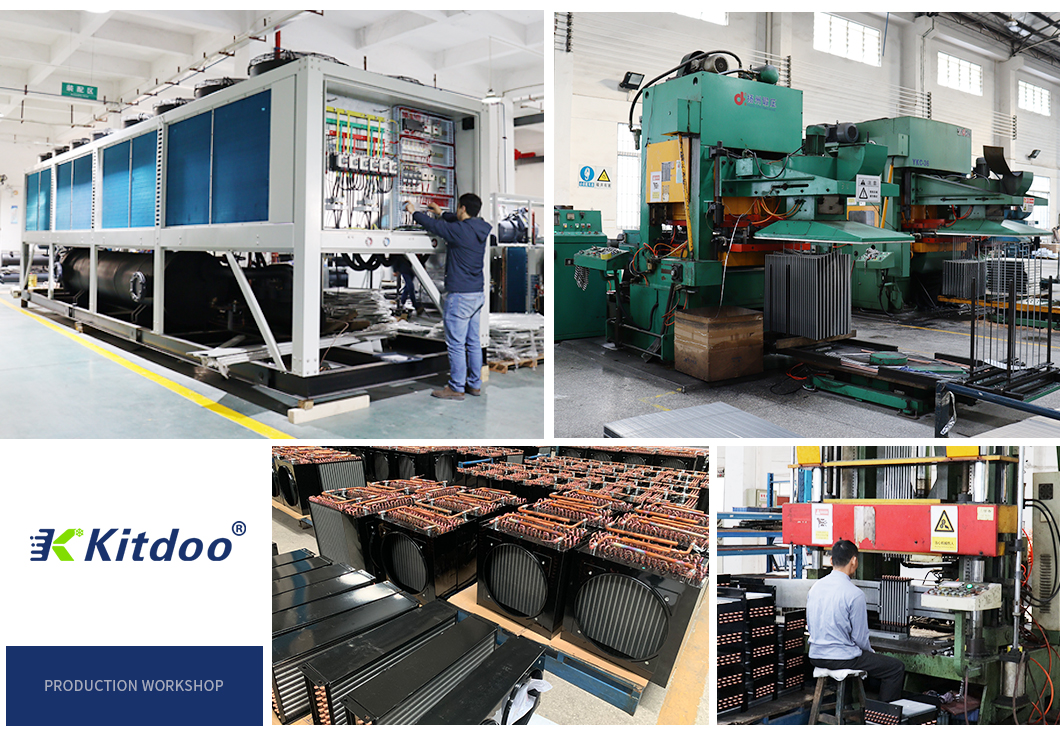

Company Profile：
