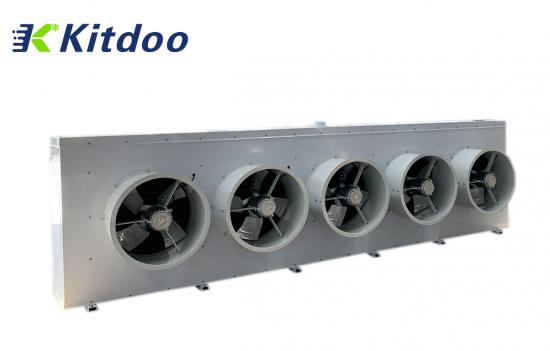

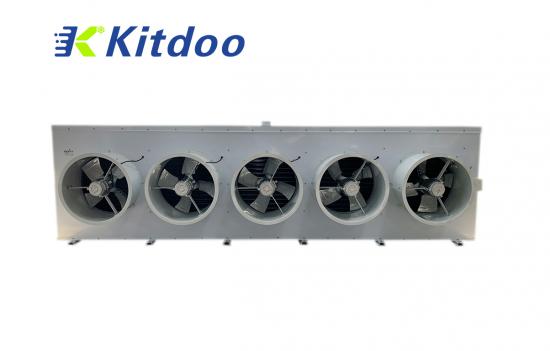

Axial flow fan ceiling cooling freezer air cooled evaporators

KITDOO BRAND axial flow fan air cooled evaporators are always used in large cold room, which is need the long-range wind blowing.

Brand:
Kitdoo
Payment:
T/T, WesternUnion, L/C
Product Origin:
China
Color:
white
Order(MOQ):
10
Shipping Port:
Guangzhou/Foshan/Shenzhen
Lead Time:
10-15 days
Fin space:
4.5mm/6mm/9mm
Fan diameter:
500mm/600mm
Packing:
wooden
Color:
white
Voltage:
220v/380v
Refrigerant:
R22/R404A/R134/R410A
Port:
Guangzhou/Foshan/Shenzhen

Inquiry now

product introduction

Axial flow fan ceiling cooling freezer air cooled evaporators

1.Using electricity defrosting and special water spray equipment with the advantage of large even water flow and splash-preventing.

2.User can ass module in the controller to realize automatic defrosting control.Fast efficient defrosting and less cost.

3.Axial fan evaporators meet the long range needs of large cold storage.

4.Water pan and side plate are easily disassembled.

Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Fan				HeaterVoltage (v)
Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Qty	Size (mm)	Air flow (m³/h)	Voltage (v)	HeaterVoltage (v)
DL-2.0/10	2000	10	4.5	1	300	1700	380	220
DL-3.0/15	3000	15	4.5	2	300	3400	380	220
DL-5.0/25	5000	25	4.5	3	400	5100	380	220
DL-8.0/40	8000	40	4.5	2	400	8000	380	220
DL-11.2/55	11200	55	4.5	2	500	8000	380	220
DL-16.2/80	16200	80	4.5	2	500	12000	380	220
DL-21.0/105	21000	105	4.5	2	500	12000	380	220
DL-25.0/135	25000	135	4.5	3	500	18000	380	220
DL-32.6/160	32600	160	4.5	3	500	18000	380	220
DL-37.6/185	37600	185	4.5	3	500	18000	380	220
DL-42.7/220	42700	220	4.5	4	500	24000	380	220
DL-50.0/250	50000	250	4.5	4	500	24000	380	220
DL-55.0/280	55000	280	4.5	4	500	24000	380	220
DL-60.0/300	60000	300	4.5	4	500	24000	380	220
DL-66.0/330	66000	330	4.5	4	500	24000	380	220
DL-70.0/375	70000	375	4.5	4	600	44000	380	220
DL-82.0/410	82000	410	4.5	4	600	44000	380	220
DL-94.0/470	94000	470	4.5	5	630	45000	380	220
DL-116.0/580	11600	580	4.5	5	630	45000	380	220

Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Fan				HeaterVoltage (v)
Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Qty	Size (mm)	Air flow (m³/h)	Voltage (v)	HeaterVoltage (v)
DD-1.3/7	1300	7	6	1	300	1700	380	220
DD-2.2/12	2200	12	6	2	300	3400	380	220
DD-2.8/15	2800	15	6	2	300	3400	380	220
DD-3.7/22	3700	22	6	3	300	5100	380	220
DD-5.6/30	5600	30	6	2	400	8000	380	220
DD-7.5/40	7500	40	6	2	400	8000	380	220
DD-11.2/60	11200	60	6	2	500	12000	380	220
DD-14.9/80	14900	80	6	2	500	12000	380	220
DD-18.7/100	18700	100	6	3	500	18000	380	220
DD-22.4/120	22400	120	6	3	500	18000	380	220
DD-26.4/140	26400	140	6	3	500	18000	380	220
DD-30.0/160	30000	160	6	4	500	24000	380	220
DD-35.0/180	35000	180	6	4	500	24000	380	220
DD-37.0/200	37000	200	6	4	500	24000	380	220
DD-40.0/220	40000	220	6	4	500	24000	380	220
DD-46.0/250	46000	250	6	4	500	24000	380	220
DD-50.0/275	50000	275	6	4	600	44000	380	220
DD-57.0/310	57000	310	6	5	600	44000	380	220
DD-67.0/360	67000	360	6	5	630	45000	380	220
DD-81.0/440	81000	440	6	5	630	45000	380	220

Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Fan				HeaterVoltage (v)
Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Qty	Size (mm)	Air flow (m³/h)	Voltage (v)	HeaterVoltage (v)
DJ-1.2/8	1200	8	9	2	300	3400	380	220
DJ-2.1/15	2100	15	9	3	300	5100	380	220
DJ-3.6/20	3600	20	9	2	400	8000	380	220
DJ-4.6/30	4600	30	9	2	400	8000	380	220
DJ-7.1/40	7100	40	9	2	500	12000	380	220
DJ-8.9/55	8900	55	9	2	500	12000	380	220
DJ-11.6/70	11600	70	9	3	500	18000	380	220
DJ-14.3/85	14300	85	9	3	500	18000	380	220
DJ-17.1/100	17100	100	9	3	500	18000	380	220
DJ-19.6/115	19600	115	9	4	500	24000	380	220
DJ-22/130	22000	130	9	4	500	24000	380	220
DJ-23/140	23000	140	9	4	500	24000	380	220
DJ-25/150	25000	150	9	4	500	24000	380	220
DJ-28/170	28000	170	9	4	500	24000	380	220
DJ-30/190	30000	190	9	4	600	44000	380	220
DJ-35/210	35000	210	9	4	600	44000	380	220
DJ-41/250	41000	250	9	5	630	45000	380	220
DJ-50/300	50000	300	9	5	630	45000	380	220
