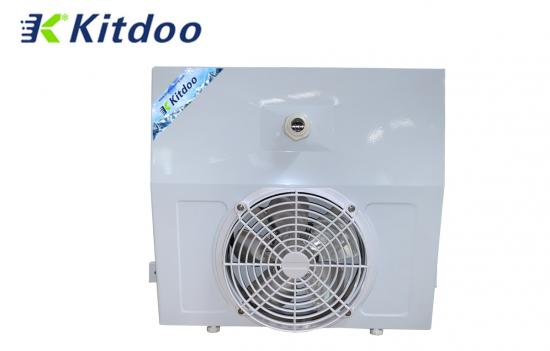

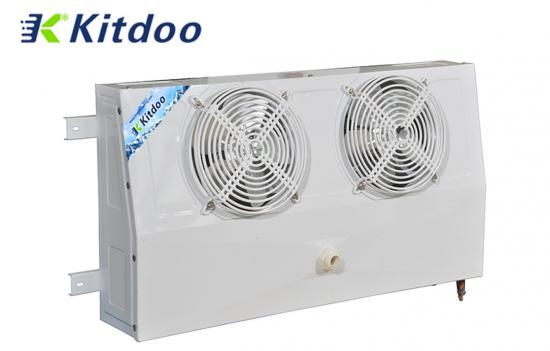

Mini freeezer refrigerator evaporators for refrigerating cabinet
KITDOO BRAND DE seriese evaporator can be reached around -18 degree,widely used in food store, supermarket, drink keeping etc.
Application Occasions:
The cold storage Mini freeezer evaporator is suitable for all kinds of large, medium and small cold storage, food processing rooms and logistics centers for storing fresh-keeping and frozen products. It can also be used for industrial low temperature air conditioning. The compact and reliable design makes it more convenient for customers to use.
Product Features:
The shell of refrigerator evaporator is generally made of plastic-sprayed iron plate, food-grade stainless steel plate or embossed aluminum plate. The Freezer air cooler evaporator has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the evaporators in refrigeration generally uses internal threads. The heat exchange copper tube is in close contact with the aluminum fin through a hydraulic tube expander, thereby reducing the contact distance and improving the heat transfer coefficient.
1.Reasonable structure, small size, light weight and easy to install, DE series evaporators are suitable for working as anevaporatorinsmall size refrigeration.
2.Automatic molding process ensure dry and clean interior of the copper tube.
3.2.6Mpa air tightness test satisfies product air tightness requirements..
4.Expanded by liquid pressure machine, the aluminum fin and copper tube are combined tightly and achieves a stable effect of heat transfer.
Defrosting:
Standard use of electricdefrosting,stainless heating pipes installed in the middle of coil and inner water plate. Independent electric heating tube junction box.
Refrigerants:
Mini freeezer evaporator can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
Product Parameter:
Model |
Capacity (W) |
Cooling surface (m2) |
Fan |
heater |
||||
Quantity |
Air flow (m3/h) |
Power (w) |
Voltage (v) |
Power (w) |
Voltage (v) |
|||
DE-0.45/2.5 |
450 |
2.5 |
1 |
400 |
1*40 |
220 |
500 |
220 |
DE-0.90/5.0 |
900 |
5 |
2 |
800 |
2*40 |
220 |
1000 |
220 |
DE-1.35/7.5 |
1350 |
7.5 |
3 |
1200 |
3*40 |
220 |
1500 |
220 |
DE-1.8/10 |
1800 |
10 |
4 |
1600 |
4*40 |
220 |
2200 |
220 |

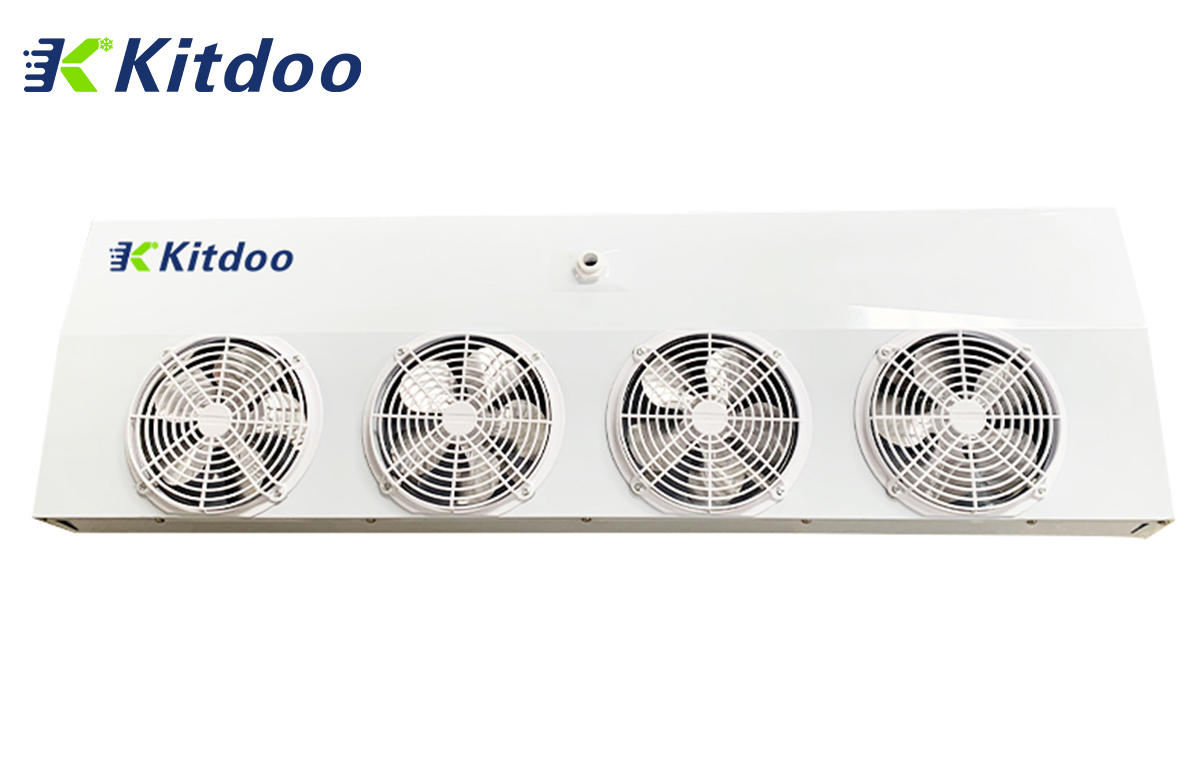

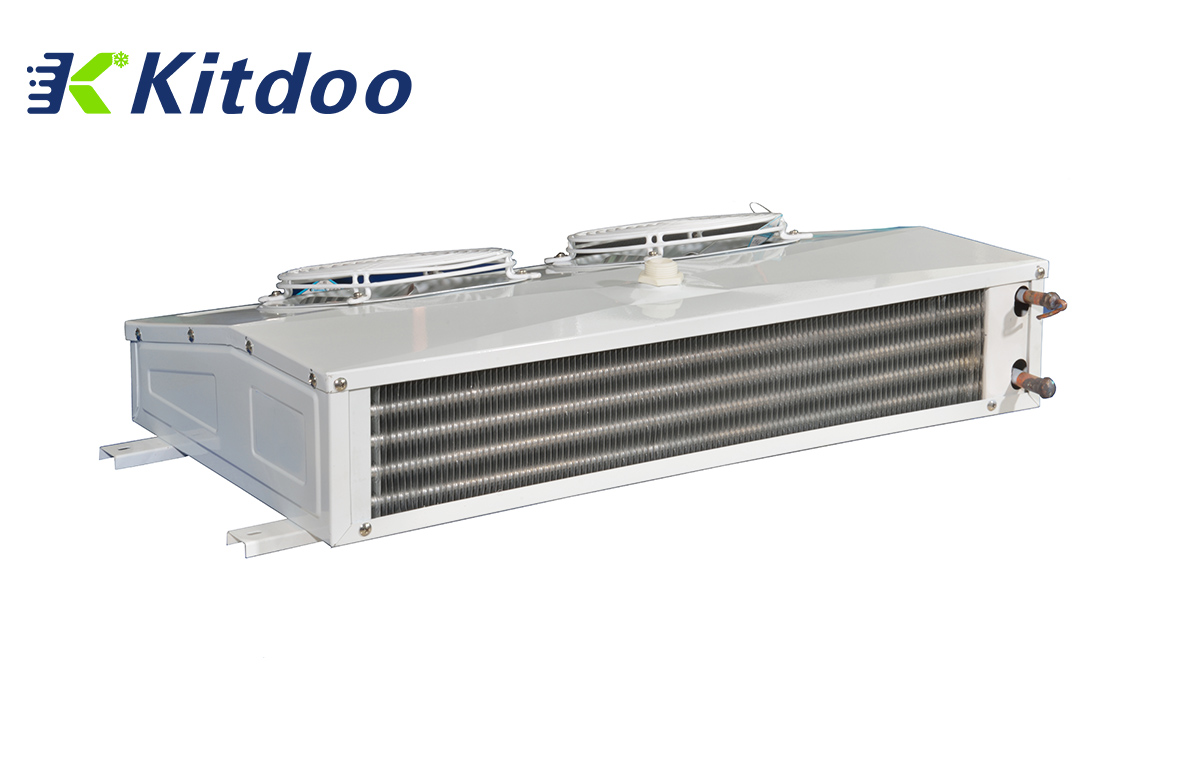

Product Detail:

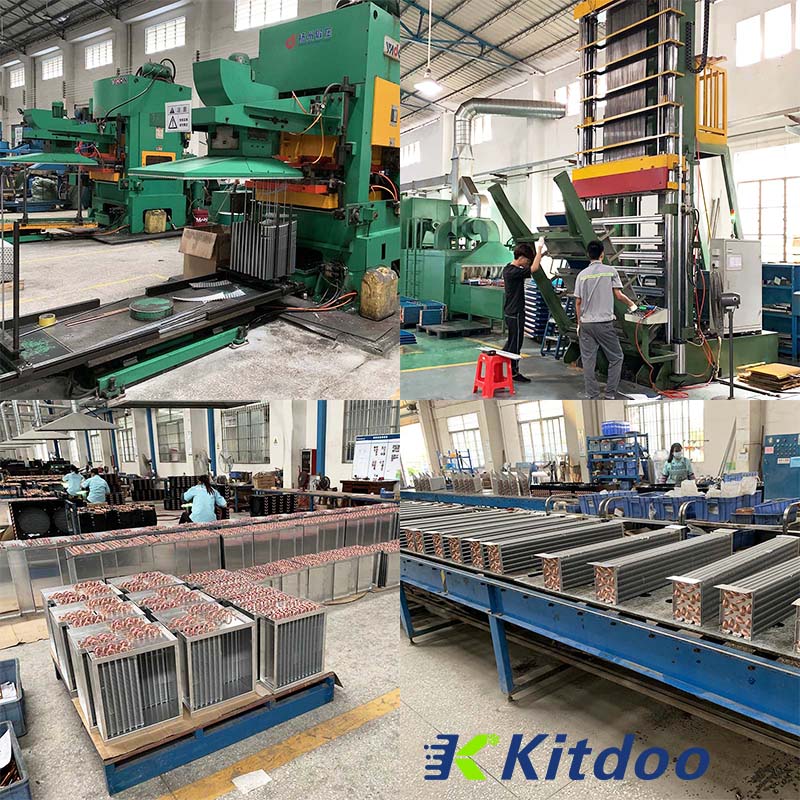

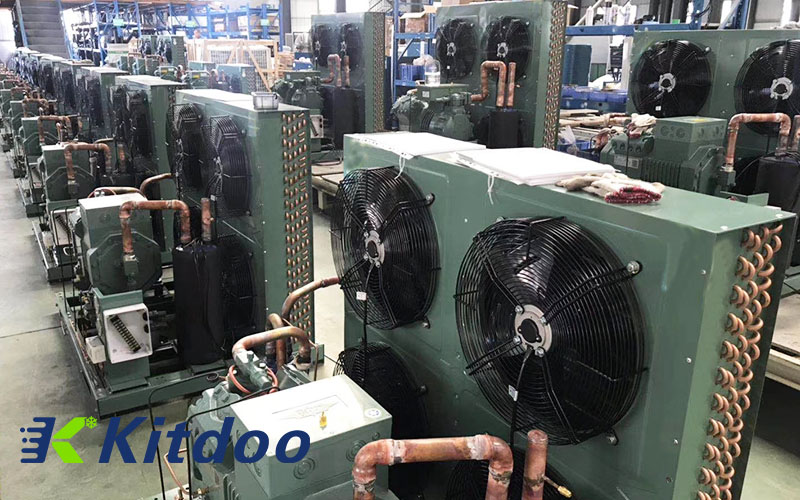

Company Profile:
FOSHAN KITDOO REFRIGERATION EQUIPMENT CO.,LTD. is a comprehensive industrial company specializing in the production of refrigeration equipment integrating research and development, manufacturing, and business services.
