Air cooled refrigeration equipment cold room condenser coils
FNF air cooled condensers are mainly used in integral open-type condensing unit with scroll compressors, hermetic and semi-hermetic piston compressor .
Application Occasions:
Refrigeration equipment condensers are mostly used in condensing units for cold storage and heat exchangers for supermarket refrigerators. Refrigeration equipment condensers are widely used in refrigeration industry, agriculture, food, restaurant, chemical industry, etc.
Product Features:
1.Kitdoo brand air cooled condenser,loop design prevents pressure loss as possible.
2.Multi-loop cross cross-spread contributes to better heat dispersion effect.
3.Three colors available.
4.Customized available.
5. Cabinet is steel plate with plastic spray, corrosion-proof and pleasant looking.
6. Mechanically expanded pipes with AL fins good heat transfer performance.
7. Air Cooled condenser have done 2.8 Mpa gas pressure and pollution clear before leave factory.
8. It is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.
Refrigerants:
Air Cooled condenser can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
Product Parameter:
Model |
Capacity
(w) |
Cooling surface
(m2) |
Dimension
(mm) |
Fan quantity |
fan size
(mm) |
FNF-7.2/26 |
7800 |
26 |
820*165*430 |
2 |
350 |
FNF-8.8/30 |
8800 |
30 |
950*180*610 |
2 |
400 |
FNF-9.0/42 |
10800 |
42 |
980*200*590 |
2 |
400 |
FNF-10.2/50 |
14000 |
50 |
950*200*530 |
2 |
400 |
FNF-15.2/53 |
15200 |
53 |
980*200*590 |
2 |
400 |
FNF-19/63 |
19000 |
63 |
960*200*630 |
2 |
400 |
FNF-21.5/75 |
22000 |
75 |
960*220*630 |
2 |
400 |

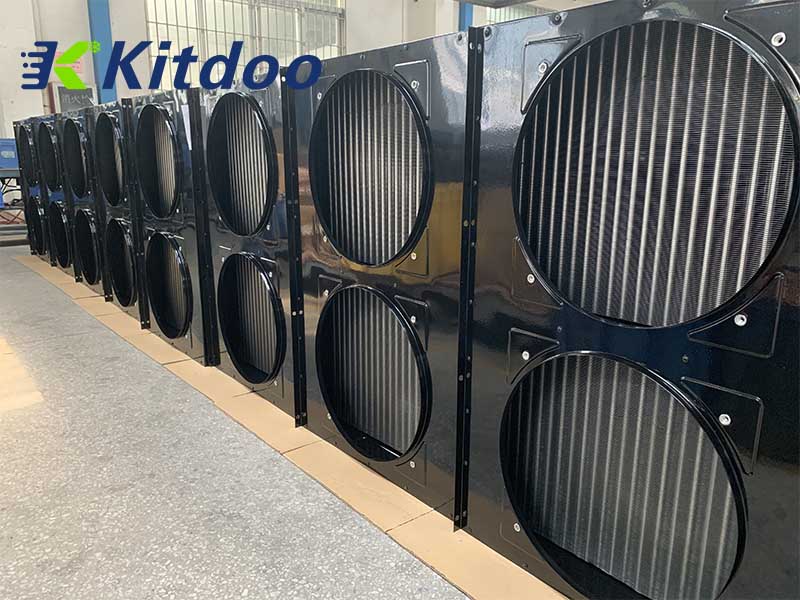

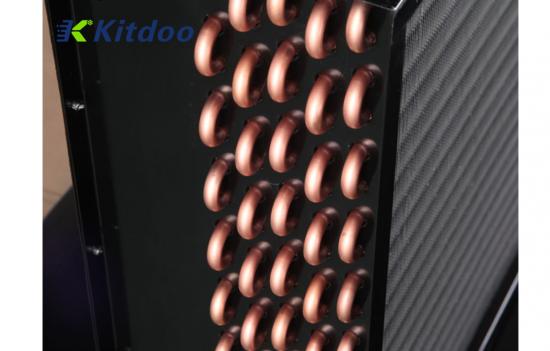

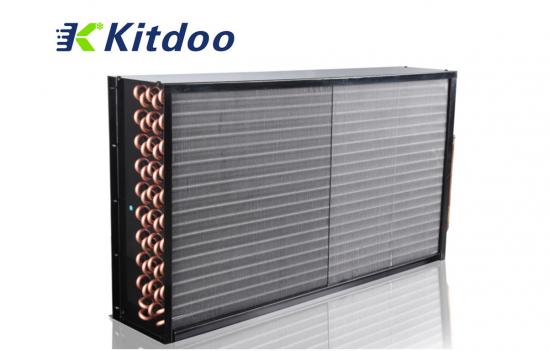

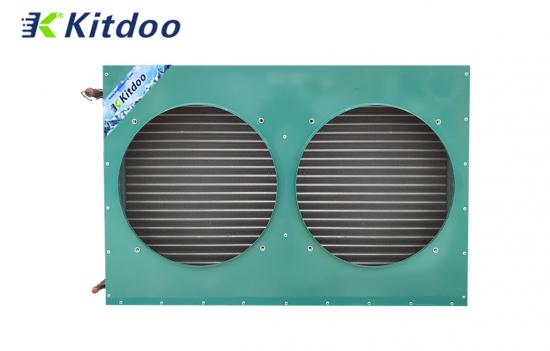

Product Detail:

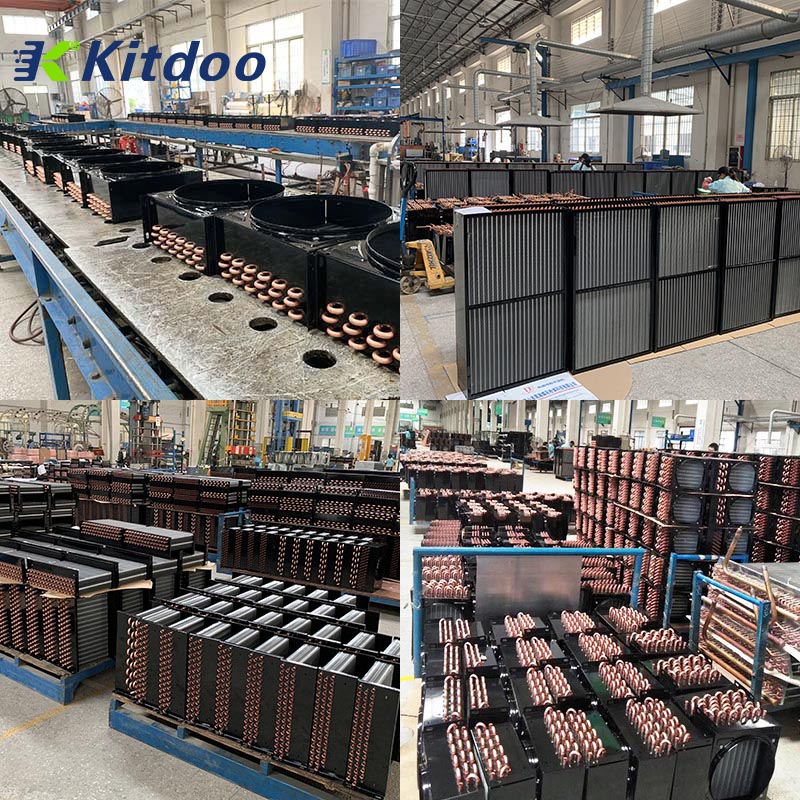

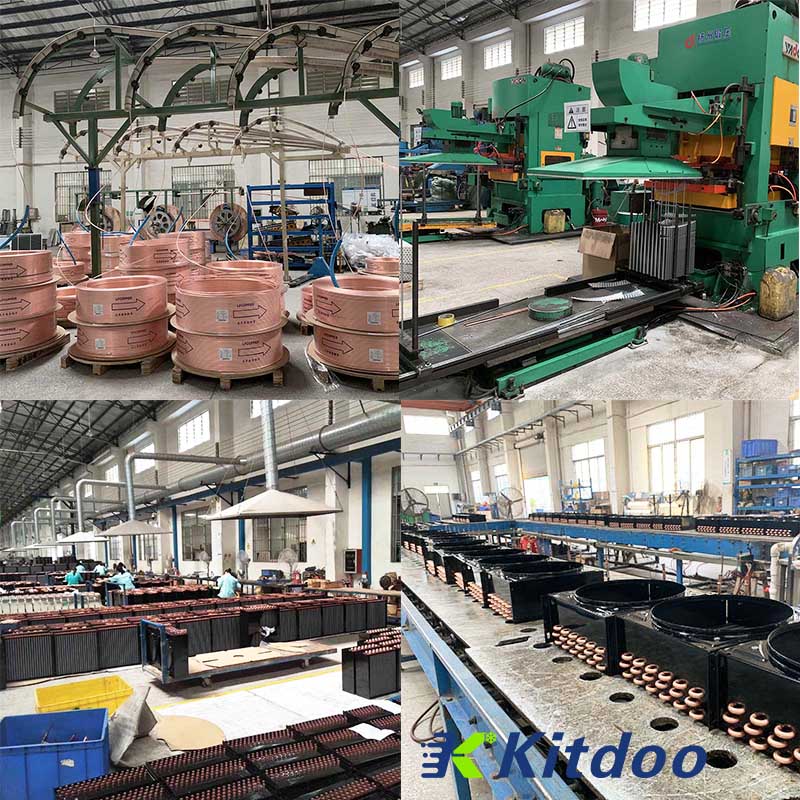

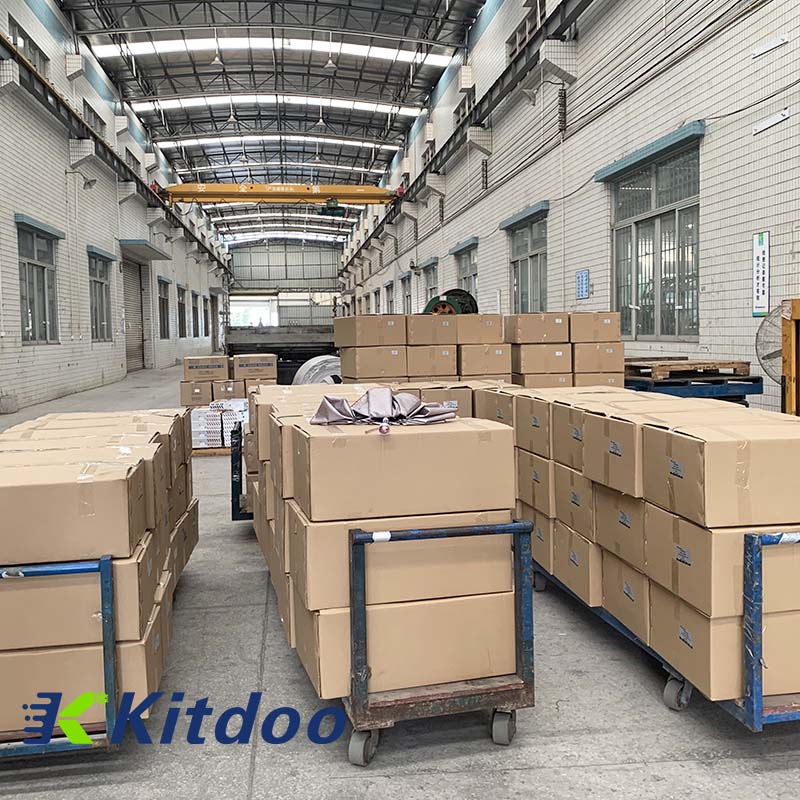

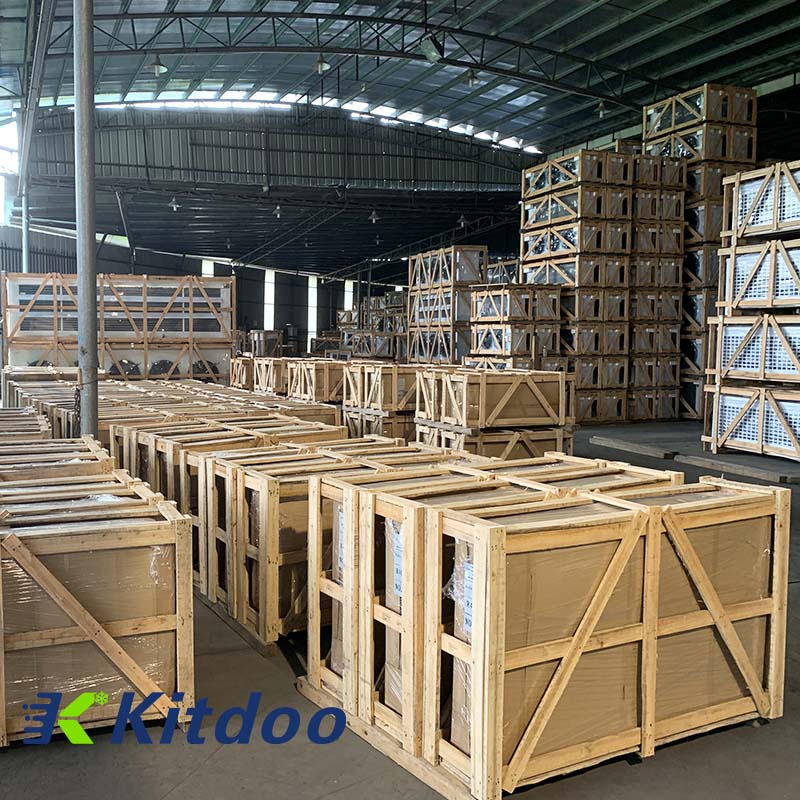

Company Profile:
FOSHAN KITDOO REFRIGERATION EQUIPMENT CO.,LTD. is a comprehensive industrial company specializing in the production of refrigeration equipment integrating research and development, manufacturing, and business services.
