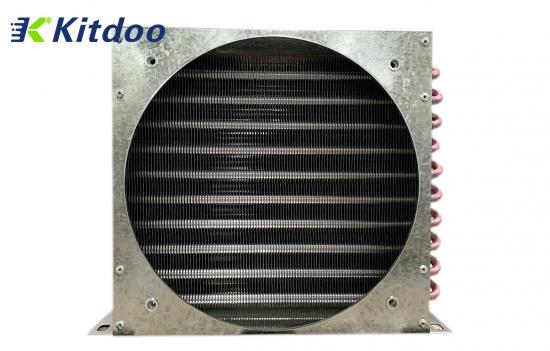

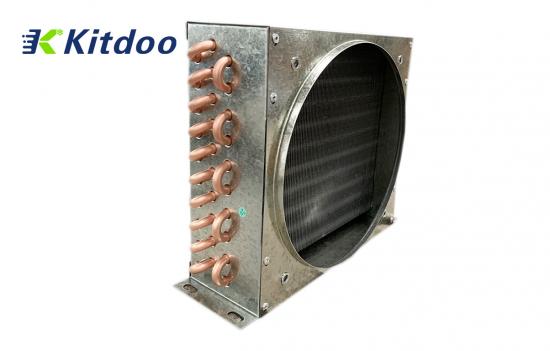

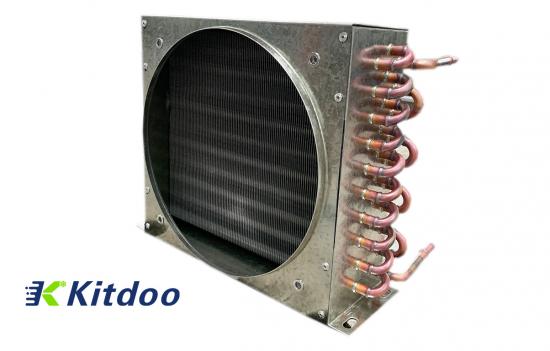

Small high-efficiency condenser for freezer
1.Kitdoo Cooling Condenser with reasonable structure, good compatibility and can be matched with various compressors.
2.The Air Cooled Condensers are tested under 2.8MPa, to make sure the products' high gas tightness.
3.Base on customers' requirement,Kitdoo air cooled chiller condensers can be customized.
4.Kitdoo Air Cooled Condensers with high quality aluminum fins, can be with different fin space to meet customers' requirement.
5. Cabinet is steel plate with plastic spray, corrosion-proof and pleasant looking.
6. Mechanically expanded pipes with AL fins good heat transfer performance.
7. Air Cooling Condensers have done 2.8 Mpa gas pressure and pollution clear before leave factory.
8. R22, R134A, R404A, R407C etc are optional.
9. Large air flow and low speed Built-in motor with low noise and nice looking.
10. Cold room condenser is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.
|
Model |
Capacity （w） |
Cooling surface (m2) |
Dimension (mm) |
Fan quantity |
fan size (mm) |
|
FNF-1.9/9.8 |
1850 |
9.8 |
385*150*330 |
1 |
300 |
|
FNF-2.5/11.3 |
2500 |
11.3 |
440*150*420 |
1 |
350 |
|
FNF-2.8/13 |
3000 |
13 |
440*150*420 |
1 |
350 |
|
FNF-4.4/16.5 |
4400 |
16.5 |
460*150*460 |
1 |
350 |
|
FNF-5.5/20 |
5500 |
20 |
510*165*530 |
1 |
400 |
|
FNF-6.0/22 |
6500 |
22 |
510*200*530 |
1 |
400 |
