cooler unit

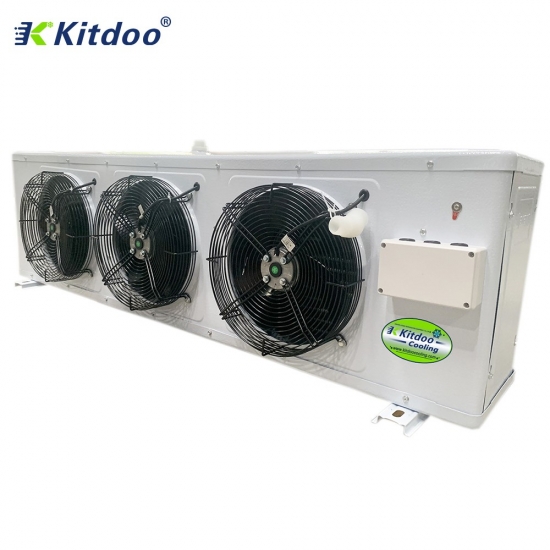

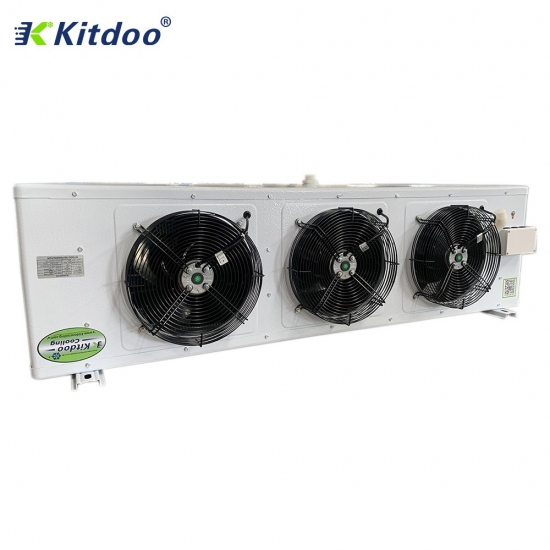

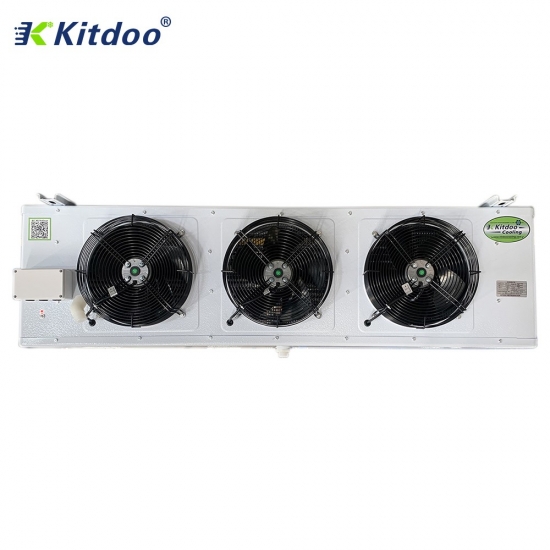

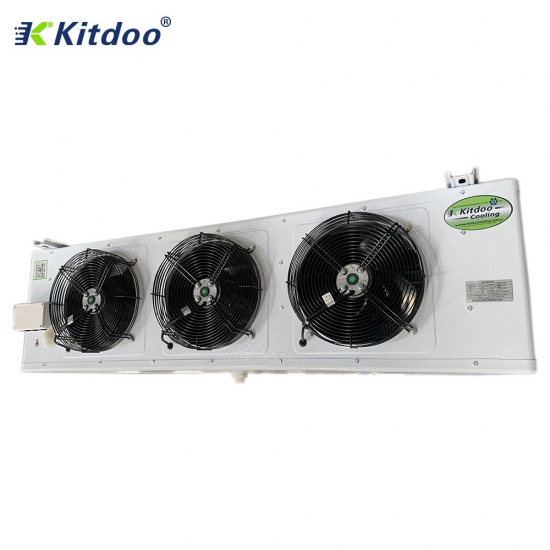

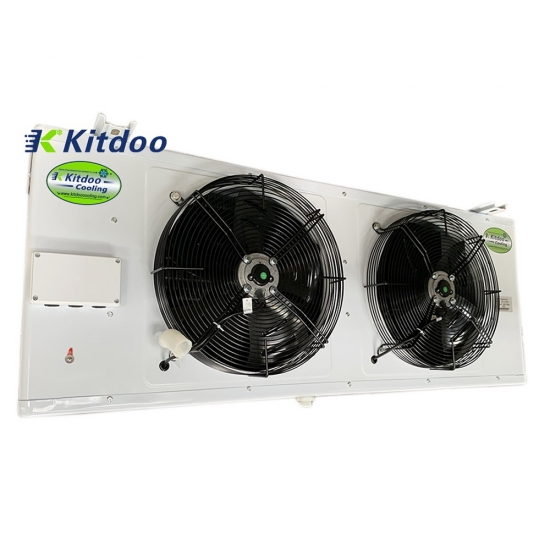

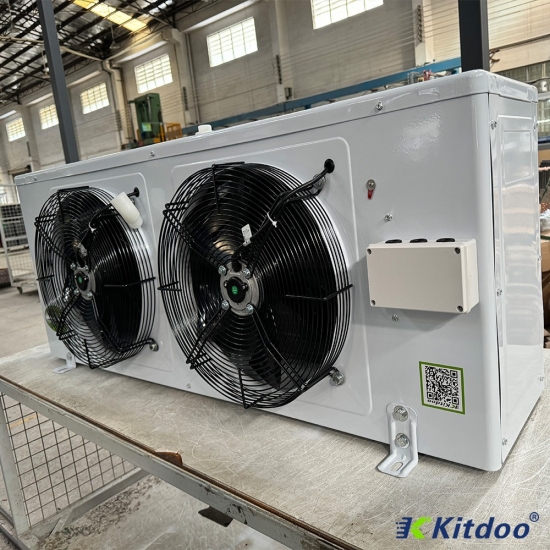

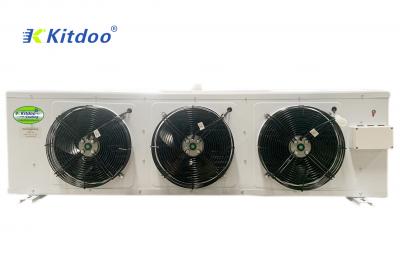

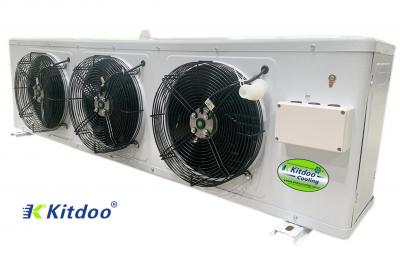

cold room air cooler/evaporative cooler unit for cold storage

DD series cold room air cooler is for Medium temperature from -2  to -18 degree, fin space is 6mm.Mainly used in cold storage for vegetables, fruits and frozen meat.


  • Brand:

    Kitdoo
  • Payment:

    T/T,WesternUnion,L/C
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    Guangzhou/Foshan/Shenzhen
  • Lead Time:

    15-20 days
  • Cold room temperature:

    -2to -18℃
  • Refrigerant:

    R22/R404A/R134A/R410

cold room air cooler/evaporative cooler unit for cold storage

DD series cold room air cooler is for Medium temperature from -2  to -18 degree, fin space is 6mm.Mainly used in cold storage for vegetables, fruits and frozen meat.

Application Occasions:

Model D Series evaporative cooler unit is a type of cooling equipment applied to vrious of refrigeratories like chiller coolers, storing and freshing food. Model D series have the three types: dl evaporator, dd evaporator, dj evaporator, which can meet different requirement on temperature. Model DL applies to 0 degree freshness storehouse. Model dd evaporator applies to -18 degree cold storage. Model DJ applies to -25 degree quick-frozen storage.

Product Features:

The shell of air evaporative air cooler is generally made of plastic-sprayed iron plate, food-grade stainless steel plate or embossed aluminum plate. The air evaporative air cooler has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the air cooler generally uses internal threads. The heat exchange copper tube is in close contact with the aluminum fin through a hydraulic tube expander, thereby reducing the contact distance and improving the heat transfer coefficient.
After the cool air cooler is produced, it goes through a strict decontamination process to ensure the cleanliness of the quality system. The room cooler unit uses a high-efficiency outer rotor motor. The motor of this structure has the advantages of large air volume, high wind speed, and long service life. The cool air cooler should be able to Install explosion-proof motors according to different needs.

KITDOO refrigeration equipment company provides customers with professional one-stop cold chain services.

1.Commercial Medium temperature cold air cooler.

2.There are enough space between fans and coils.

3.Exquisite and compact shape design to maximize cold room space utilization

Product Features:

Model

Capacity

(W)

Cooling surface

(m2)

Fin Space

(mm)

Fan

HeaterVoltage

(v)

Qty

Size

(mm)

Air flow

(m3/h)

Voltage

(v)

DD-1.3/7

1300

7

6

1

300

1700

380

220

DD-2.2/12

2200

12

6

2

300

3400

380

220

DD-2.8/15

2800

15

6

2

300

3400

380

220

DD-3.7/22

3700

22

6

3

300

5100

380

220

DD-5.6/30

5600

30

6

2

400

8000

380

220

DD-7.5/40

7500

40

6

2

400

8000

380

220

DD-11.2/60

11200

60

6

2

500

12000

380

220

DD-14.9/80

14900

80

6

2

500

12000

380

220

DD-18.7/100

18700

100

6

3

500

18000

380

220

DD-22.4/120

22400

120

6

3

500

18000

380

220

DD-26.4/140

26400

140

6

3

500

18000

380

220

DD-30.0/160

30000

160

6

4

500

24000

380

220

DD-35.0/180

35000

180

6

4

500

24000

380

220

DD-37.0/200

37000

200

6

4

500

24000

380

220

DD-40.0/220

40000

220

6

4

500

24000

380

220

DD-46.0/250

46000

250

6

4

500

24000

380

220

DD-50.0/275

50000

275

6

4

600

44000

380

220

DD-57.0/310

57000

310

6

5

600

44000

380

220

DD-67.0/360

67000

360

6

5

630

45000

380

220

DD-81.0/440

81000

440

6

5

630

45000

380

220

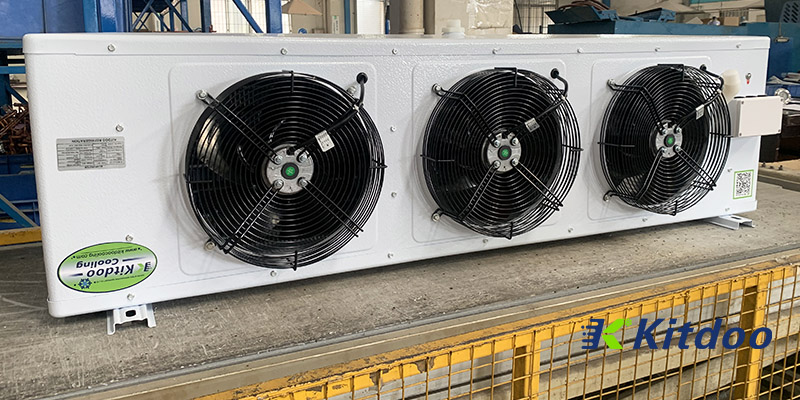

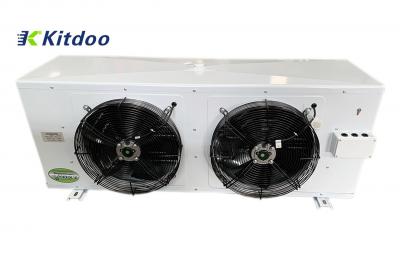

Product Detail:

cold room air cooler

chiller coolers

air evaporative air cooler

cooler condenser unit

Company Profile:

FOSHAN KITDOO REFRIGERATION EQUIPMENT CO.,LTD. is a comprehensive industrial company specializing in the production of refrigeration equipment integrating research and development, manufacturing, and business services.

KITDOO REFRIGERATION EQUIPMENT

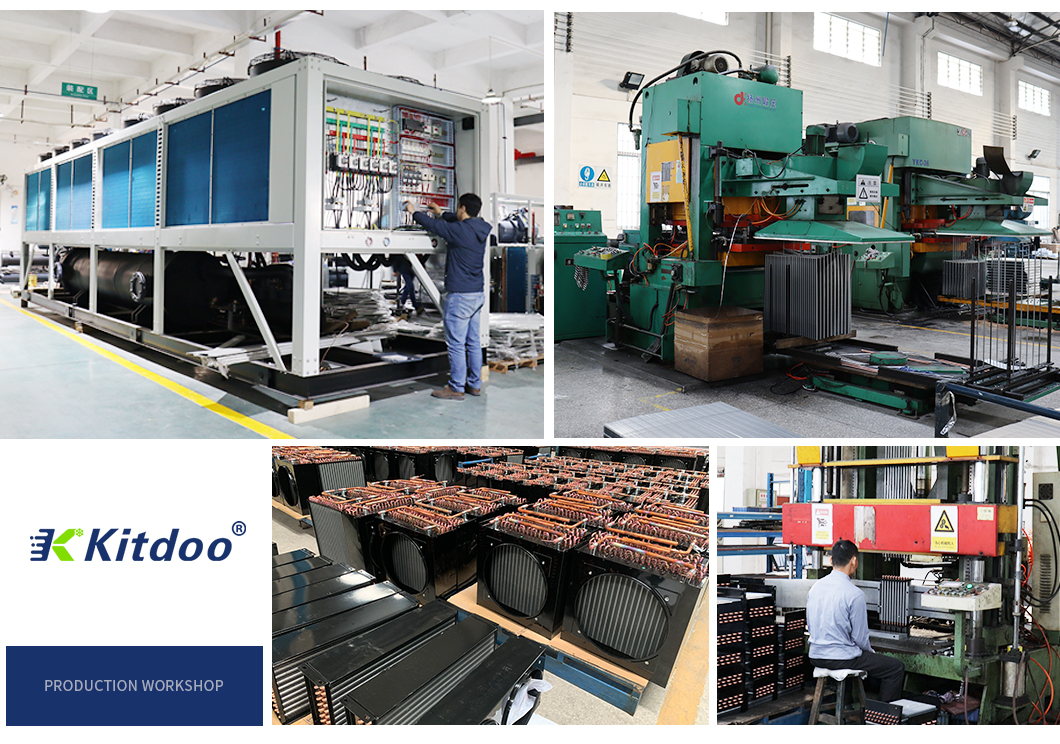

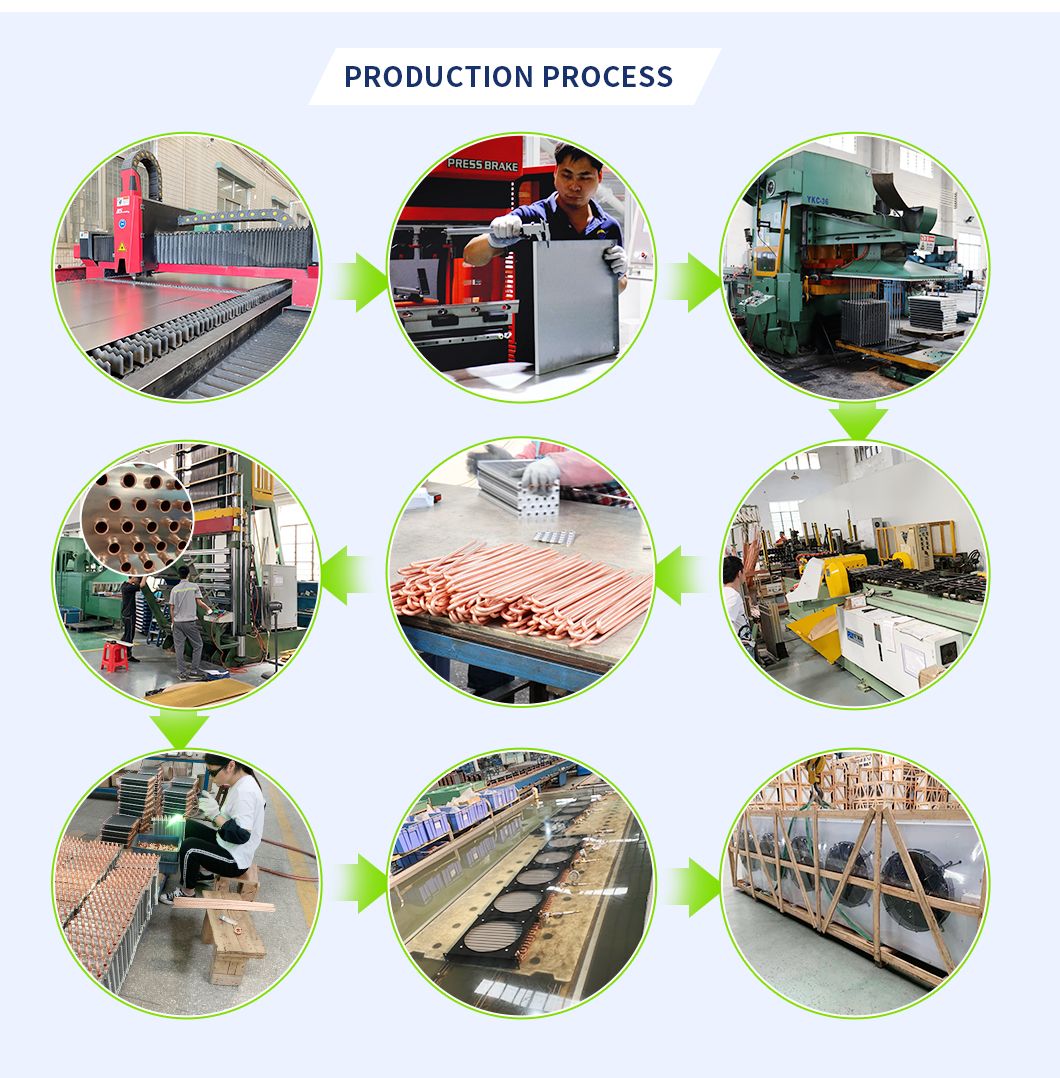

KITDOO FactoryKITDOO Process
