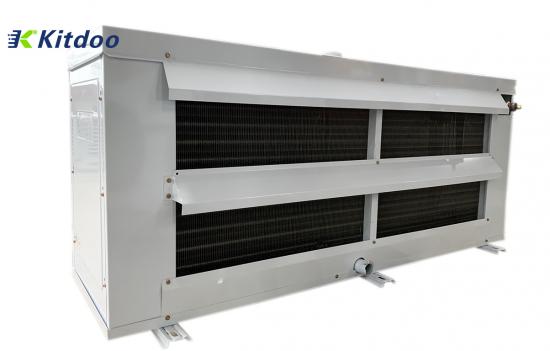

Commercial refrigerator cooler evaporators by water defrosting
1.KITDOO brand SDL series water defrosting evaporator is suitable for the storage temperature around 0 degree, such as the for eggs, vegetable frsh-keeping.
2.Defrost structure design for water disc type, large water flow, uniform distribution of water, defrost effect is good, small rise in storage temperature.
3.Using water defrosting air cooler evaporator products can greatly reduce electricity consumption, save energy and reduce costs.
|
Model |
Capacity (W) |
Cooling surface (m2) |
Fin Space (mm) |
Fan |
HeaterVoltage (v) |
|||
|
Qty |
Size (mm) |
Air flow (m3/h) |
Voltage (v) |
|||||
|
SDL-2.0/10 |
2000 |
10 |
4.5 |
1 |
300 |
1700 |
380 |
220 |
|
SDL-3.0/15 |
3000 |
15 |
4.5 |
2 |
300 |
3400 |
380 |
220 |
|
SDL-5.0/25 |
5000 |
25 |
4.5 |
3 |
400 |
5100 |
380 |
220 |
|
SDL-8.0/40 |
8000 |
40 |
4.5 |
2 |
400 |
8000 |
380 |
220 |
|
SDL-11.2/55 |
11200 |
55 |
4.5 |
2 |
500 |
8000 |
380 |
220 |
|
SDL-16.2/80 |
16200 |
80 |
4.5 |
2 |
500 |
12000 |
380 |
220 |
|
SDL-21.0/105 |
21000 |
105 |
4.5 |
2 |
500 |
12000 |
380 |
220 |
|
SDL-25.0/135 |
25000 |
135 |
4.5 |
3 |
500 |
18000 |
380 |
220 |
|
SDL-32.6/160 |
32600 |
160 |
4.5 |
3 |
500 |
18000 |
380 |
220 |
|
SDL-37.6/185 |
37600 |
185 |
4.5 |
3 |
500 |
18000 |
380 |
220 |
|
SDL-42.7/220 |
42700 |
220 |
4.5 |
4 |
500 |
24000 |
380 |
220 |
|
SDL-50.0/250 |
50000 |
250 |
4.5 |
4 |
500 |
24000 |
380 |
220 |
|
SDL-55.0/280 |
55000 |
280 |
4.5 |
4 |
500 |
24000 |
380 |
220 |
|
SDL-60.0/300 |
60000 |
300 |
4.5 |
4 |
500 |
24000 |
380 |
220 |
|
SDL-66.0/330 |
66000 |
330 |
4.5 |
4 |
500 |
24000 |
380 |
220 |
|
SDL-70.0/375 |
70000 |
375 |
4.5 |
4 |
600 |
44000 |
380 |
220 |
|
SDL-82.0/410 |
82000 |
410 |
4.5 |
4 |
600 |
44000 |
380 |
220 |
|
SDL-94.0/470 |
94000 |
470 |
4.5 |
5 |
630 |
45000 |
380 |
220 |
|
SDL-116.0/580 |
11600 |
580 |
4.5 |
5 |
630 |
45000 |
380 |
220 |
