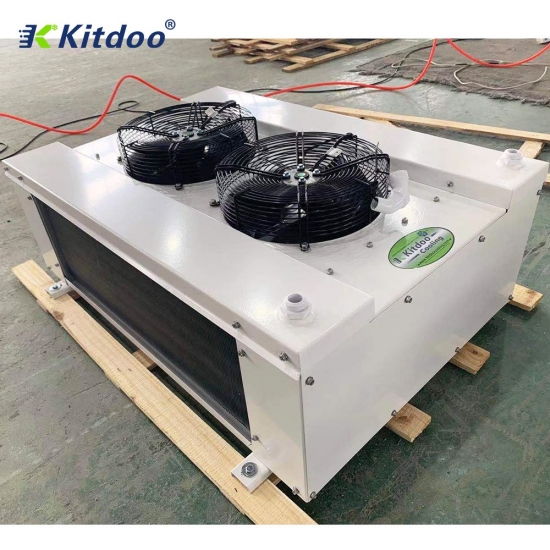

Energy saving air cooler for cold room
Kitdoo brand Industrial Evaporator is one ofrefrigeration evaporators,Rotary Evaporator is install in small handing rooms, labs or larders which has requirements in air-flow directions.Dual discharge design to minimize loss from evaporation of water , apply for food's processing room and refrigerated room. Voltage 220V and accept customization.
Application Occasions：
The cold storage Evaporators in refrigeration is suitable for all kinds of large, medium and small cold storage, food processing rooms and logistics centers for storing fresh-keeping and frozen products. Air Cooler Evaporators can also be used for industrial low-temperature air-conditioning. The compact and reliable design makes it more convenient for customers to use.
Product Features:
The high temprature Air Cooler Evaporator has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the evaporators in refrigeration generally uses internal threads.
1.Al-Mg alloy sheet with powder coating (RAL-9003), strong anti-corrosion performance and light weight. Outer drip tray adopts integral higed structure, easy to clean and operate.
2.The refrigeration evaporators adopt u-shaped stainless heaters evenly put into the fins, which can shorten the defrosting time;
3.The shell is made of quality iron with surface plastic-sprayed which is corrosion-resistant and beautiful;
4.Assembled with axial fan motor, double side wind blown type ith soft breeze and low noise;
-
External rotor motor,working temperature -40~60 °C, fans individually connected to junction box.
Fan specification φ350, number from 1 to 4, fan motors are divided in to 4-poles and 6-poles to meet different noise requiremenet.
Defrosting:
Standard use of electricdefrosting,stainless heating pipes installed in the middle of coil and inner water plate. Independent electric heating tube junction box.Hot gas defrosting or coil hot gas defrosting & water plate electric defrosting can also be used.
Refrigerants:
It can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
Product Parameter：
|
Model |
Capacity (W) |
Cooling surface (m2) |
Fin Space (mm) |
Fan |
HeaterVoltage (v) |
|||
|
Qty |
Size (mm) |
Air flow (m3/h) |
Voltage (v) |
|||||
|
DL-3.9/20 |
3900 |
20 |
4.5 |
2 |
300 |
3400 |
220 |
220 |
|
DL-5.8/30 |
5800 |
30 |
4.5 |
2 |
350 |
4600 |
220 |
220 |
|
DL-7.8/40 |
7800 |
40 |
4.5 |
2 |
350 |
4600 |
220 |
220 |
|
DL-10.7/55 |
10700 |
55 |
4.5 |
3 |
350 |
6900 |
220 |
220 |
|
DL-15.5/80 |
15500 |
80 |
4.5 |
4 |
350 |
9200 |
380 |
380 |
|
DL-20.3/105 |
20300 |
105 |
4.5 |
4 |
400 |
12000 |
380 |
380 |
|
DL-26.2/135 |
26200 |
135 |
4.5 |
4 |
450 |
16000 |
380 |
380 |
|
DL-31.0/160 |
31000 |
160 |
4.5 |
4 |
450 |
16000 |
380 |
380 |
|
DL-35.9/185 |
35900 |
185 |
4.5 |
4 |
450 |
16000 |
380 |
380 |
|
DL-42.6/220 |
42600 |
220 |
4.5 |
4 |
450 |
19200 |
380 |
380 |

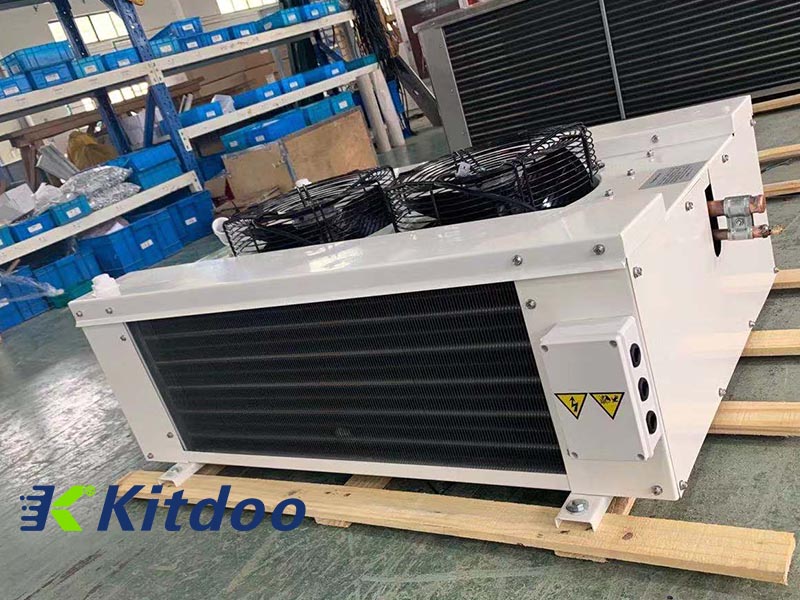

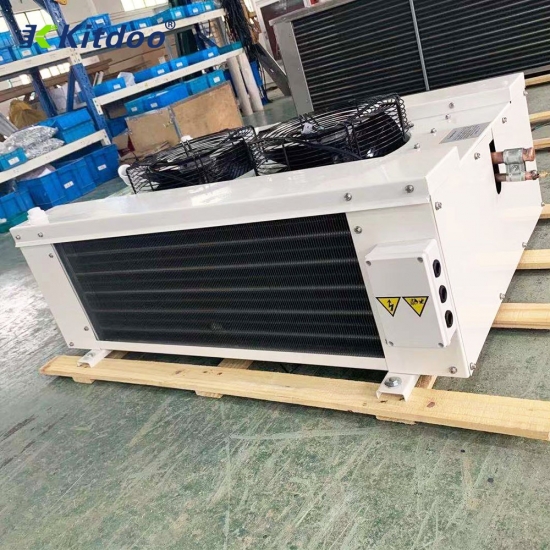

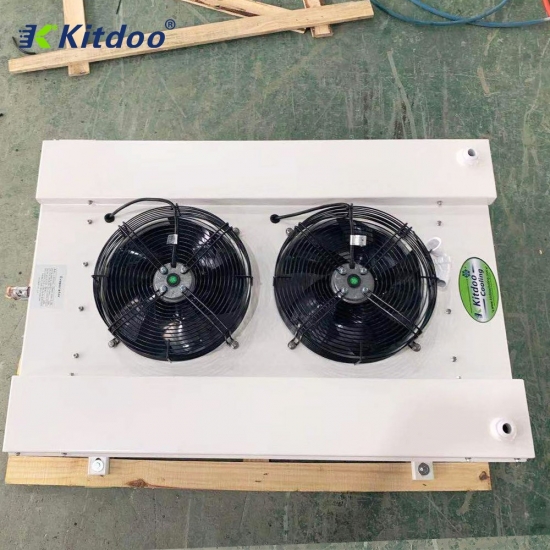

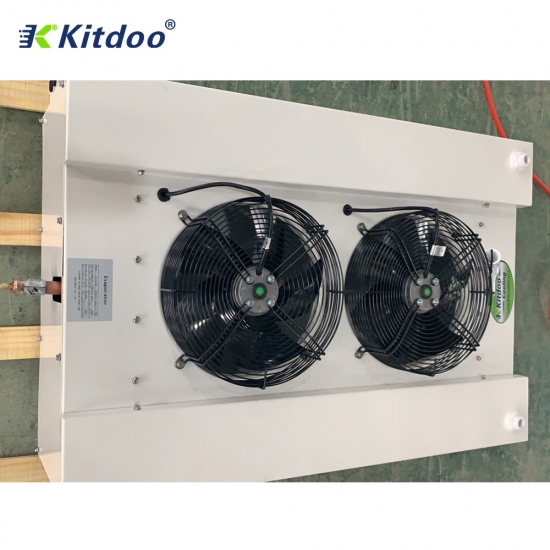

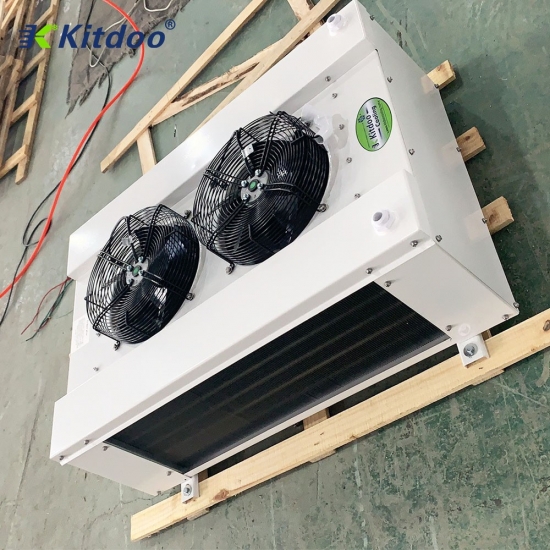

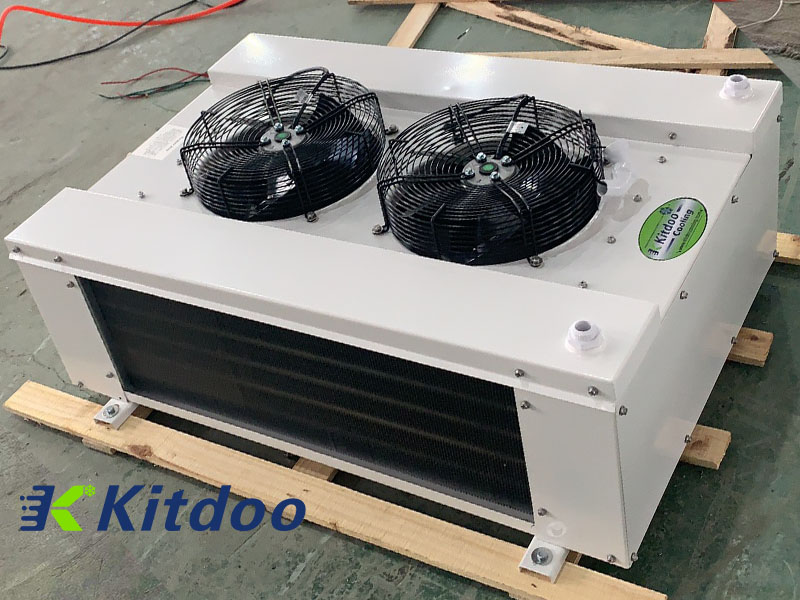

Product Detail：

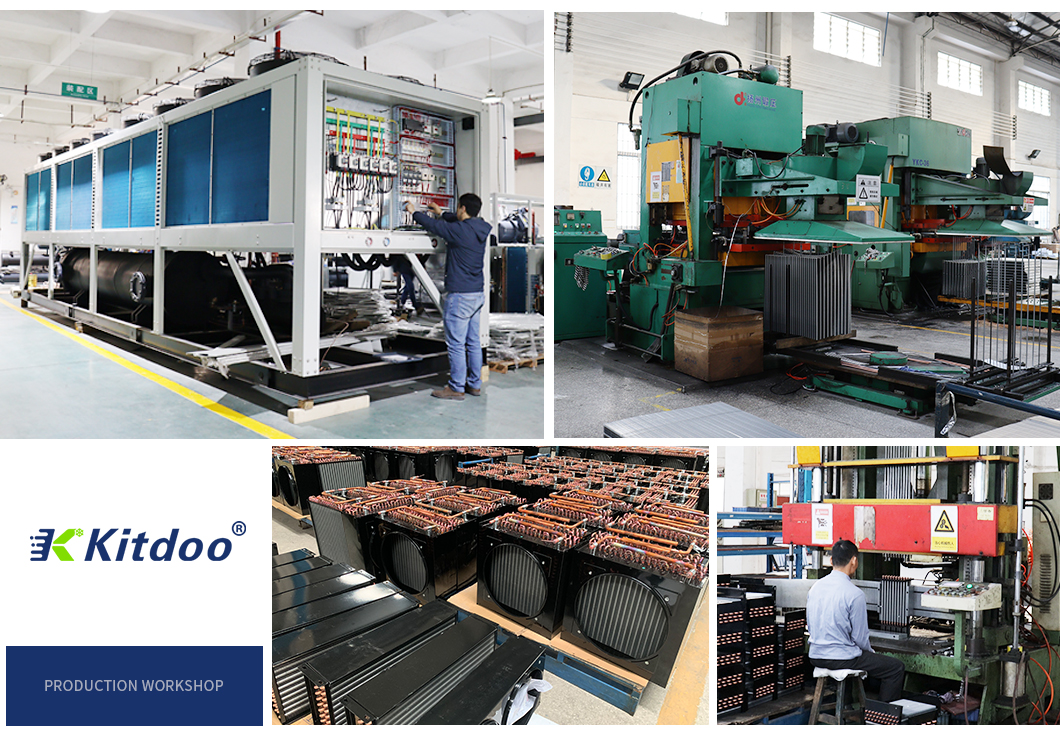

Company Profile：
FOSHAN KITDOO REFRIGERATION EQUIPMENT CO.,LTD. is a comprehensive industrial company specializing in the production of refrigeration equipment integrating research and development, manufacturing, and business services.
Company Profile：
Q1: Are you a factory or a trading company?
A1: We have a factory
Q2: Where is your factory located?
A2: Our factory is located in Foshan, Guangdong province.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, Southeast Asia, South America, Africa, South Asia and so on.
Welcome to contact us for more details!
