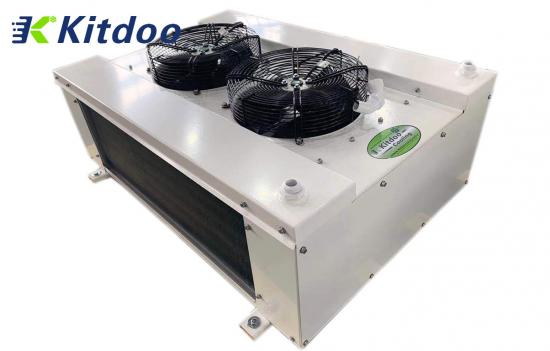

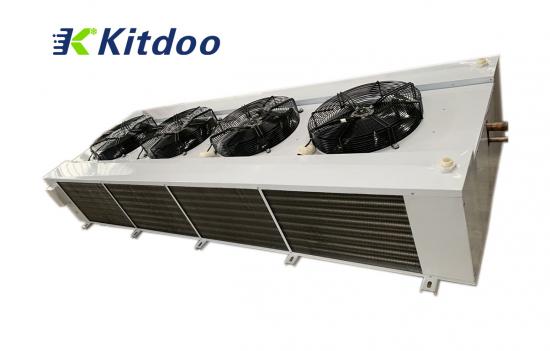

Double side blow high temperature air cooler cold room evaporators
Kitdoo brand double side blow high temperature air cooled evaporators are specially designed for food processing workshops.Including DL series for around 0 degree, and DD sereies for around -18 degree.
Application Occasions：
The cold storage air cooler double side blow evaporator is suitable for all kinds of large, medium and small cold storage, food processing rooms and logistics centers for storing fresh-keeping and frozen products. It can also be used for industrial low-temperature air-conditioning. The compact and reliable design makes it more convenient for customers to use.DL series for around 0 degree, and DD sereies for around -18 degree.
Product Features:
The shell of double side blow cold room evaporator is generally made of plastic-sprayed iron plate, food-grade stainless steel plate or embossed aluminum plate. The high temprature double side blow evaporator has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the air cooling evaporator generally uses internal threads. The heat exchange copper tube is in close contact with the aluminum fin through a hydraulic tube expander, thereby reducing the contact distance and improving the heat transfer coefficient.
1.Double side bolwing, the air flow is gentle and quiet.
2.Suitable for around 0 defree cold room temperature.
3.New super efficient heat exchanger achieves very high ratings.
4.Mainly used in the operation room of medium &large refrigeration.
Defrosting:
Standard use of electricdefrosting,stainless heating pipes installed in the middle of coil and inner water plate. Independent electric heating tube junction box.Hot gas defrosting or coil hot gas defrosting & water plate electric defrosting can also be used.
Refrigerants:
It can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
Product Parameter：
|
Model |
Capacity (W) |
Cooling surface (m2) |
Fin Space (mm) |
Fan |
HeaterVoltage (v) |
|||
|
Qty |
Size (mm) |
Air flow (m3/h) |
Voltage (v) |
|||||
|
DL-3.9/20 |
3900 |
20 |
4.5 |
2 |
300 |
3400 |
220 |
220 |
|
DL-5.8/30 |
5800 |
30 |
4.5 |
2 |
350 |
4600 |
220 |
220 |
|
DL-7.8/40 |
7800 |
40 |
4.5 |
2 |
350 |
4600 |
220 |
220 |
|
DL-10.7/55 |
10700 |
55 |
4.5 |
3 |
350 |
6900 |
220 |
220 |
|
DL-15.5/80 |
15500 |
80 |
4.5 |
4 |
350 |
9200 |
380 |
380 |
|
DL-20.3/105 |
20300 |
105 |
4.5 |
4 |
400 |
12000 |
380 |
380 |
|
DL-26.2/135 |
26200 |
135 |
4.5 |
4 |
450 |
16000 |
380 |
380 |
|
DL-31.0/160 |
31000 |
160 |
4.5 |
4 |
450 |
16000 |
380 |
380 |
|
DL-35.9/185 |
35900 |
185 |
4.5 |
4 |
450 |
16000 |
380 |
380 |
|
DL-42.6/220 |
42600 |
220 |
4.5 |
4 |
450 |
19200 |
380 |
380 |
Product Detail：
Company Profile：
FOSHAN KITDOO REFRIGERATION EQUIPMENT CO.,LTD. is a comprehensive industrial company specializing in the production of refrigeration equipment integrating research and development, manufacturing, and business services.
