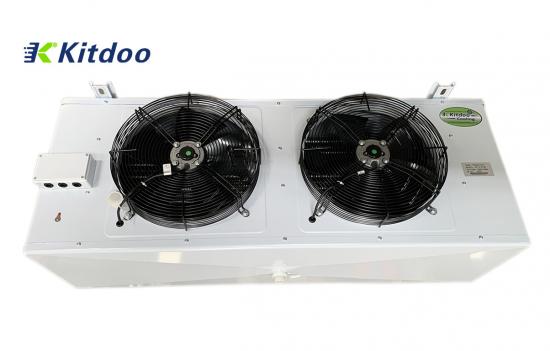

Freezer Cold Storage Air Cooler Evaporator In Cold Room

Freezer Cold room evaporators is for low temperature cold storage,when the cold room temperature is aroung -25 degree, ,select fin space of 9mm.

Brand:
Kitdoo
Payment:
T/T,WesternUnion,L/C
Product Origin:
China
Color:
White
Shipping Port:
Guangzhou/Foshan/Shenzhen
Lead Time:
15-20 days
Fin space:
9mm
Cold room temperature:
-18 to -31℃
Refrigerant:
R22/R404A/R134A/R410

Inquiry now

product introduction

Freezer Cold room evaporators is for low temperature cold storage,when the cold room temperature is aroung -25 degree, ,select fin space of 9mm.

Application Occasions：

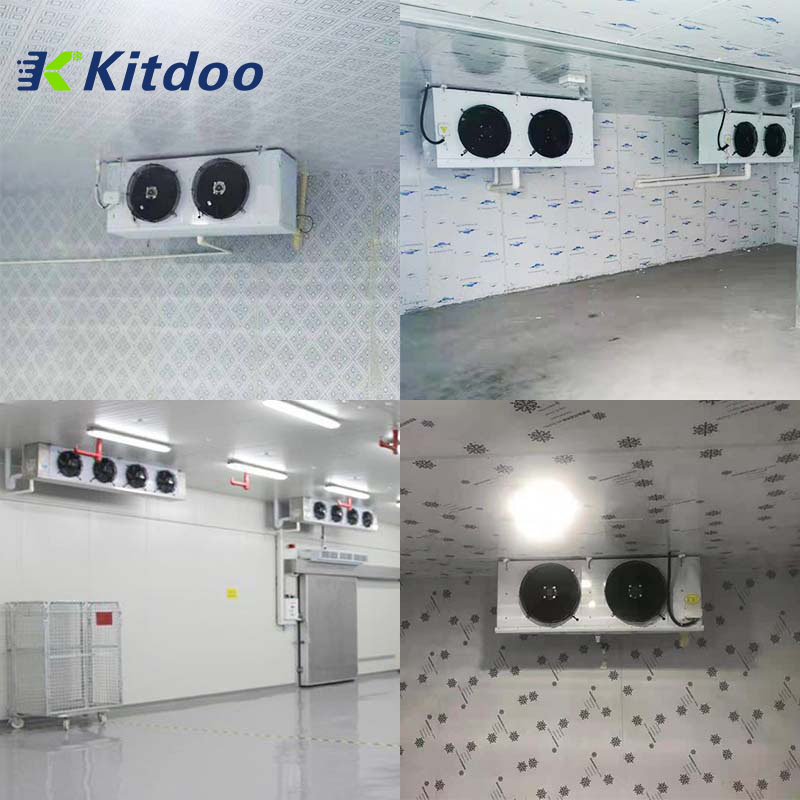

Low-temperature cold storage is a kind of equipment for freezing various foods, dairy products, meat, aquatic products, chemicals, medicine, seedlings, scientific experiments, etc. The temperature in the storage is generally -25℃.

Product Features:

The shell of cold Storage evaporator is generally made of plastic-sprayed iron plate, food-grade stainless steel plate or embossed aluminum plate. The cold Storage evaporator has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the freezer evaporator generally uses internal threads. The heat exchange copper tube is in close contact with the aluminum fin through a hydraulic tube expander, thereby reducing the contact distance and improving the heat transfer coefficient.

After the freezer evaporator is produced, it goes through a strict decontamination process to ensure the cleanliness of the quality system. The cold room evaporator uses a high-efficiency outer rotor motor. The motor of this structure has the advantages of large air volume, high wind speed, and long service life. The cold room evaporator should be able to Install explosion-proof motors according to different needs.

1.DJ series air cooled evaporator is low temperature type

2.DJ series air cooled evaporator is suit for cold room temperature from -2 to -18 degree.

3.Fin space:9 mm.

4.By electrical defrosting

Product Detail：

Freezer evaporators

Air Evaporators

cold room evaporator

cold storage evaporator

evaporator in cold room

Defrosting:

Standard use of electricdefrosting,stainless heating pipes installed in the middle of coil and inner water plate. Independent electric heating tube junction box.Hot gas defrosting or coil hot gas defrosting & water plate electric defrosting can also be used.

Refrigerants:

It can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.

Product Parameter：

Model	Capacity (W)	Cooling surface (m2)	Fin Space (mm)	Fan				HeaterVoltage (v)
Model	Capacity (W)	Cooling surface (m2)	Fin Space (mm)	Qty	Size (mm)	Air flow (m3/h)	Voltage (v)	HeaterVoltage (v)
DJ-1.2/8	1200	8	9	2	300	3400	380	220
DJ-2.1/15	2100	15	9	3	300	5100	380	220
DJ-3.6/20	3600	20	9	2	400	8000	380	220
DJ-4.6/30	4600	30	9	2	400	8000	380	220
DJ-7.1/40	7100	40	9	2	500	12000	380	220
DJ-8.9/55	8900	55	9	2	500	12000	380	220
DJ-11.6/70	11600	70	9	3	500	18000	380	220
DJ-14.3/85	14300	85	9	3	500	18000	380	220
DJ-17.1/100	17100	100	9	3	500	18000	380	220
DJ-19.6/115	19600	115	9	4	500	24000	380	220
DJ-22/130	22000	130	9	4	500	24000	380	220
DJ-23/140	23000	140	9	4	500	24000	380	220
DJ-25/150	25000	150	9	4	500	24000	380	220
DJ-28/170	28000	170	9	4	500	24000	380	220
DJ-30/190	30000	190	9	4	600	44000	380	220
DJ-35/210	35000	210	9	4	600	44000	380	220
DJ-41/250	41000	250	9	5	630	45000	380	220
DJ-50/300	50000	300	9	5	630	45000	380	220

Company Profile：

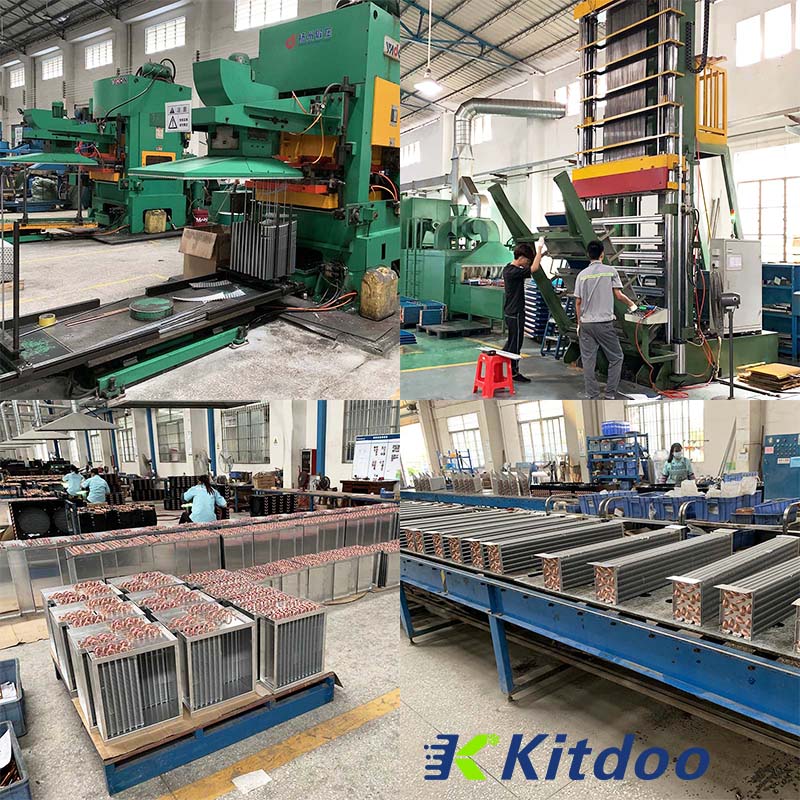

FOSHAN KITDOO REFRIGERATION EQUIPMENT CO.,LTD. is a comprehensive industrial company specializing in the production of refrigeration equipment integrating research and development, manufacturing, and business services.
