Air Condenser

2 Fans Air Cooled cold room condensers

The condenser air cooler uses high-efficiency heat exchange copper tubes. Aluminum fins use a unique shape and have a higher heat transfer coefficient.condenser air coolers are mainly used in ice machines, seafood machines, fish pond machines, freezers, beverage freezers

  • Brand:

    Kitdoo
  • Payment:

    T/T, WesternUnion, L/C
  • Product Origin:

    China
  • Color:

    black, blue, green
  • Shipping Port:

    Guangzhou/Foshan/Shenzhen
  • Lead Time:

    10-15 days

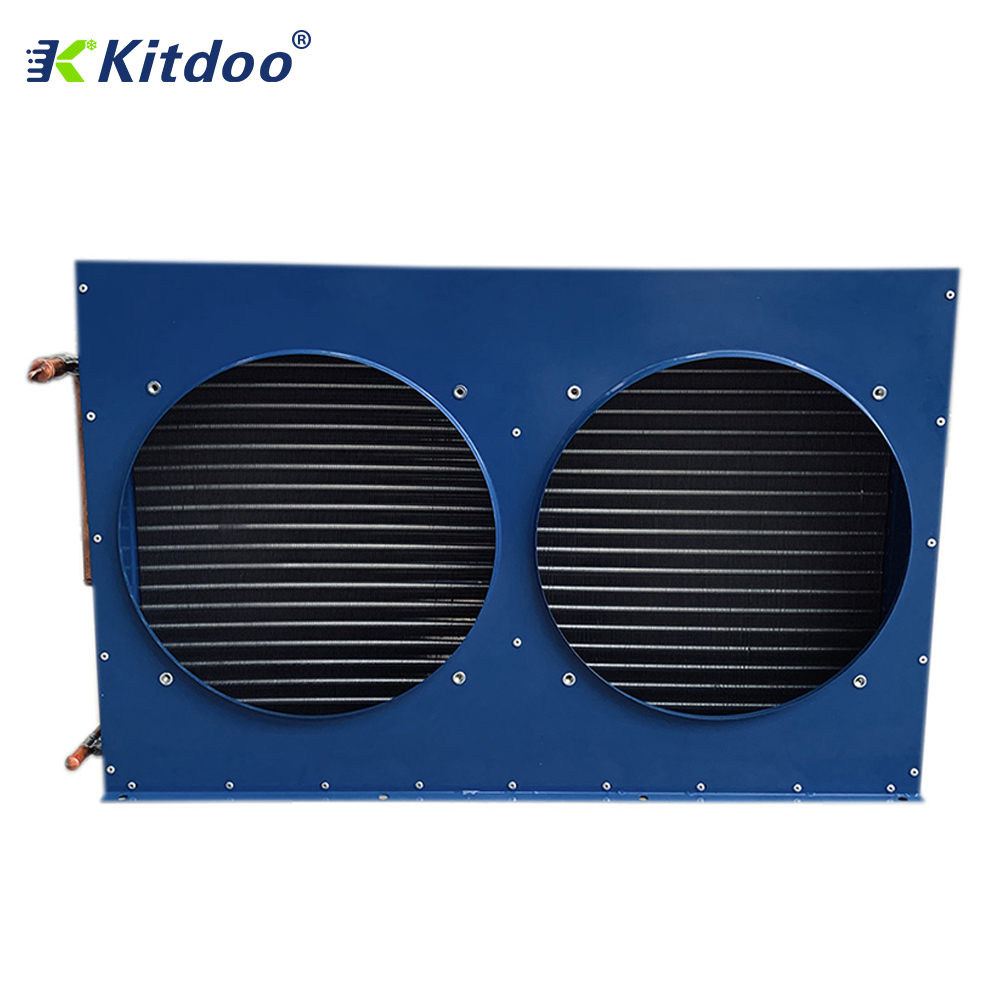

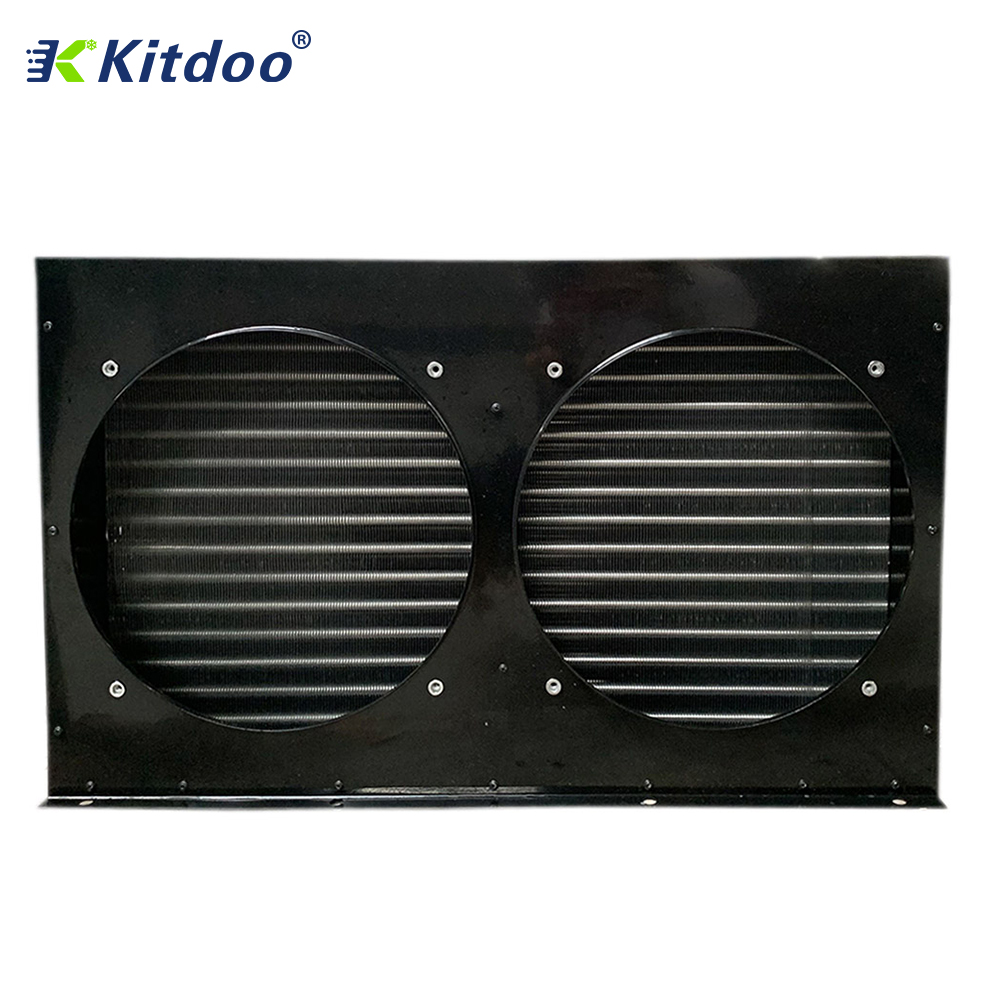

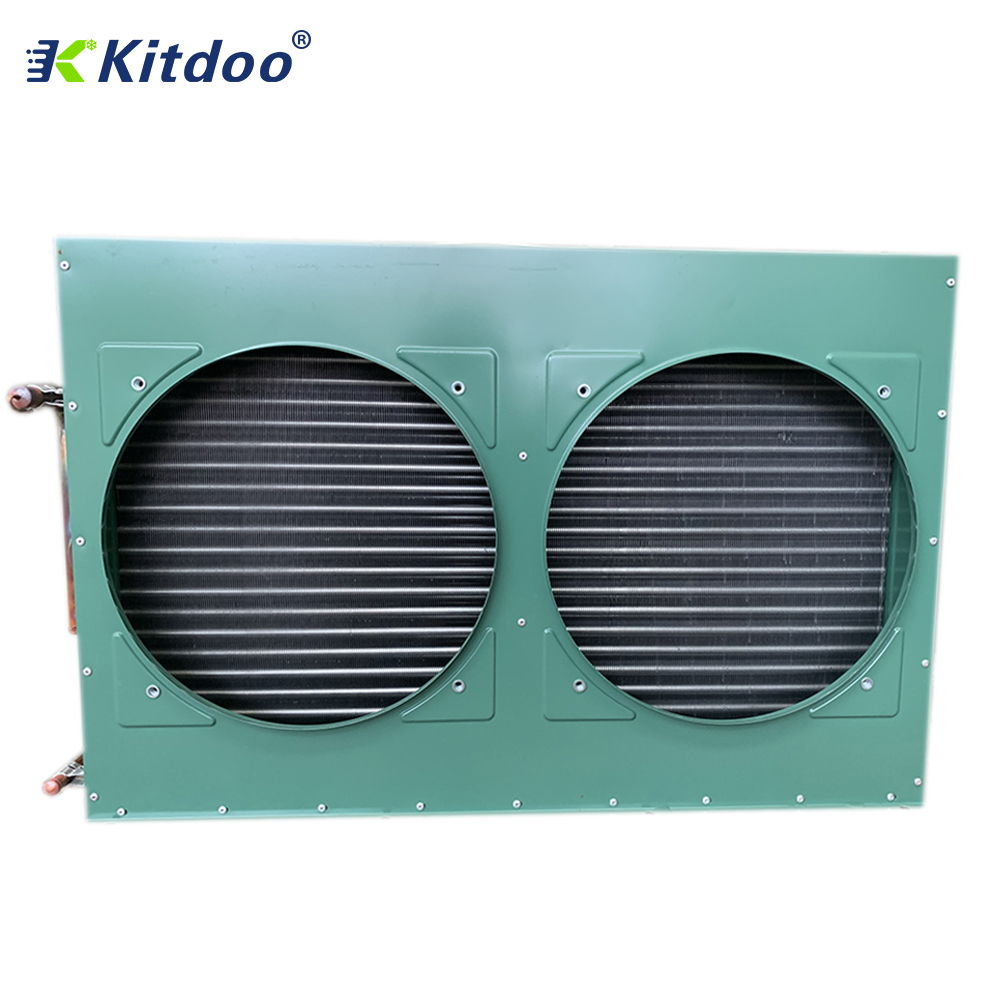

2 Fans condenser for cold room


The compressor condenser uses high-efficiency heat exchange copper tubes. Aluminum fins use a unique shape and have a higher heat transfer coefficient.Air Cold Condensers are mainly used in ice machines, seafood machines, fish pond machines, freezers, beverage freezers

Application Occasions:

Compressor condensers are mostly used in air cooled condenser unit for cold storage and heat exchangers for supermarket refrigerators. Compressor condenser are widely used in refrigeration industry, agriculture, food, restaurant, chemical industry, etc.

Product Features:

Air cooled condenser is mainly equipped with open-typecondenser unit refrigerationswith scroll compressor, hemertic & semi-hemertic compressor. This air condenser and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with high heat transfer capacity.

1.Kitdooair cooled condenser are reasonable structure good compatibility and can be matched with various compressors.

2.The shell of Air Cooled Condensers made of quality steel with surface plastic-sprayed which is corrosion-resistant and beautiful

3.Three colors available,such as Emerson Condenser

4.According to customer’s requirement different condenser fans are available.

5. Cabinet is steel plate with plastic spray, corrosion-proof and pleasant looking.
6. Mechanically expanded pipes with AL fins good heat transfer performance.
7. Air  Condensers have done 2.8 Mpa gas pressure and pollution clear before leave factory.

8. Air Condenser is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.

Refrigerants:

condenser for cold room can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.

Product Parameter:

Model

Capacity

w

Cooling surface

(m2)

Dimension

(mm)

Fan quantity

fan size

(mm)

FNF-24.2/88

24200

88

960*200*1030

4

400

FNF-36/130

36000

130

1180*200*1030

4

400

FNF-42/150

42000

150

1140*200*1230

4

400

FNF-50/180

50000

180

1390*200*1330

4

500

FNF-60/210

60000

210

1390*200*1330

4

500


Product Detail:

condenser air coolercompressor condenser

Air Cold Condenser


Company Profile:

FOSHAN KITDOO REFRIGERATION EQUIPMENT CO.,LTD. is a comprehensive industrial company specializing in the production of refrigeration equipment integrating research and development, manufacturing, and business services. air cooled condenser

air condenser
