Air Cooled condensers/condenser equipment

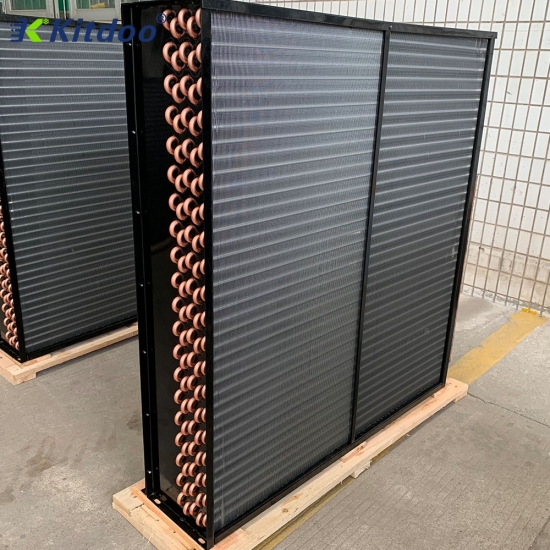

The compressor condenser uses high-efficiency heat exchange copper tubes. Aluminum fins use a unique shape and have a higher heat transfer coefficient.The compressor condensers are mainly used in ice machines, seafood machines, fish pond machines, freezers, beverage freezers
Application Occasions：
Condenser coolers are mostly used in air cooled condenser unit for cold storage and heat exchangers for supermarket refrigerators. Compressor condenser are widely used in refrigeration industry, agriculture, food, restaurant, chemical industry, etc.
Product Features:
Air cooled condenser is mainly equipped with open-typecondenser unit refrigerationswith scroll compressor, hemertic & semi-hemertic compressor. This air cooled condenser and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with high heat transfer capacity.
1.Kitdoo condenser equipments are reasonable structure good compatibility and can be matched with various compressors.
2.The shell of condenser equipment made of quality steel with surface plastic-sprayed which is corrosion-resistant and beautiful
3.Three colors available,such as bitzer condenser.
4.According to customer’s requirement different condenser fans are available.
5. Cabinet is steel plate with plastic spray, corrosion-proof and pleasant looking.
6. Mechanically expanded pipes with AL fins good heat transfer performance.
7. cold room condenser have done 2.8 Mpa gas pressure and pollution clear before leave factory.
8. cold room condenser is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.
Refrigerants:
Air cooled condenser can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
Product Parameter：
1fan
Model
Capacity
（w）
Cooling surface
(m2)
Dimension
(mm)
Fan quantity
fan size
(mm)
FNF-0.8/3.4
800
3.4
250*120*235
1
200
FNF-0.9/4.0
900
4.0
300*120*235
1
200
FNF-1.0/4.4
1000
4.4
320*130*280
1
250
FNF-1.1/5.0
1100
5.0
380*130*280
1
250
FNF-1.15/5.2
1125
5.2
400*130*280
1
250
FNF-1.2/5.4
1150
5.4
360*150*330
1
300
FNF-1.6/8.4
1600
8.4
450*150*330
1
300
Model
Capacity
（w）
Cooling surface
(m2)
Dimension
(mm)
Fan quantity
fan size
(mm)
FNF-1.9/9.8
1850
9.8
385*150*330
1
300
FNF-2.5/11.3
2500
11.3
440*150*420
1
350
FNF-2.8/13
3000
13
440*150*420
1
350
FNF-4.4/16.5
4400
16.5
460*150*460
1
350
FNF-5.5/20
5500
20
510*165*530
1
400
FNF-6.0/22
6500
22
510*200*530
1
400
Model
Capacity
（w）
Cooling surface
(m2)
Dimension
(mm)
Fan quantity
fan size
(mm)
FNF-7.2/26
7800
26
820*165*430
2
350
FNF-8.8/30
8800
30
950*180*610
2
400
FNF-9.0/42
10800
42
980*200*590
2
400
FNF-10.2/50
14000
50
950*200*530
2
400
FNF-15.2/53
15200
53
980*200*590
2
400
FNF-19/63
19000
63
960*200*630
2
400
FNF-21.5/75
22000
75
960*220*630
2
400
Model
Capacity
（w）
Cooling surface
(m2)
Dimension
(mm)
Fan quantity
fan size
(mm)
FNF-24.2/88
24200
88
960*200*1030
4
400
FNF-36/130
36000
130
1180*200*1030
4
400
FNF-42/150
42000
150
1140*200*1230
4
400
FNF-50/180
50000
180
1390*200*1330
4
500
FNF-60/210
60000
210
1390*200*1330
4
500
Product Detail：
Company Profile：
FOSHAN KITDOO REFRIGERATION EQUIPMENT CO.,LTD. is a comprehensive industrial company specializing in the production of refrigeration equipment integrating research and development, manufacturing, and business services.
FAQ：
Q1: Are you a factory or a trading company?
A1: We have a factory.
Q2: Where is your factory located?
A2: Our factory is located in Guangzhou, Guangdong province.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, Southeast Asia, South America, Africa, South Asia and so on.
Welcome to contact us for more details!
